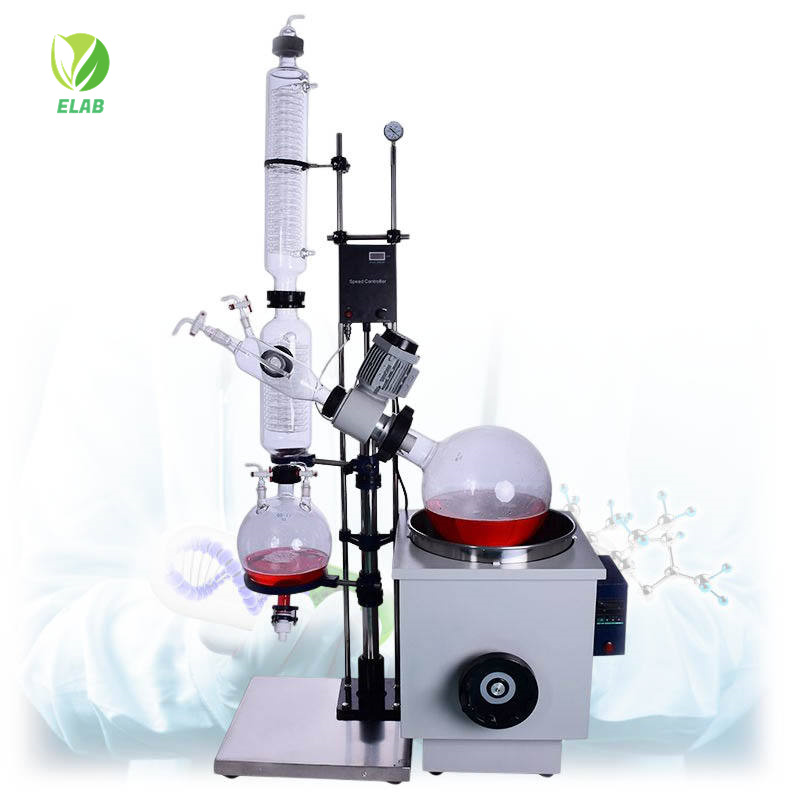

30L Rotary Evaporator

Introduction
Specifications
Comparisons

Description:

Rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.

Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.

Feature:

1.Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .

2. USES the main and secondary efficient double condenser to ensure high recovery rate.

3. Rotating bottle with nut connection, it is easy to load and unload.

4. There is tap valve under the collection bottle mouth, recycled solvent is very fast.

5. Feeding continuously.

6. Vacuum gauge is to make sure the best work vacuum degree can be adjusted for the low boiling point materials.

7. Water bath with digital and continuous temperature controlling.

8. Reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update. 详情1.jpg

Specification	Model	RE-3002
	Glass material	GG-17
	Frame material	Stainless steel
	Pot shell Material	Spray anti-corrosion 710620700mm
	Pot bravery material	Stainless steel 500*280mm
	Plate size	804*574mm
	Evaporator flask	30L ￠125Flange port
	Collect flask	20L ￠60Flange port
	Vacuum degree	0.098Mpa
	Rotary power	180W 220V/50Hz
	Rotary speed	0-110rpm
	Heating power	8KW 380V/50Hz
	Heating temp.range	RT-180°C
	Temp. accuracy	±1℃
	Lifting disctance	180mm
	Dimension(mmmmmm)	15206202470
	Packing size(mmmmmm)	1480380480 1180830710 790750850 1.46CBM
	Packing weight（KG）	(47+76+56)179
Configuration list	Speed mode	Electronic stepless adjustable speed
	Rotor speed display	digital display
	Temp. display	K type sensor with digital display
	Temp. control	Intelligent temp.control
	Sealing method	PTFE sealing
	Condenser	Vertical efficiency three reflux condenser，Main condenser160840，Secondary condenser160530
	Continuous collection	non-return valve control
	Lifting mode	Bath Manual lifting
	Temp. measurement methods	19#Standard port
	Continuous feed	40#Standard port feeding valve
	Discharge valve	PTFE discharge valve，￠60Flange port
	Vacuum display	Vacuum gauge
Optional	Lifting mode	Automatic electric lifting
	Collecting device	Double collect bottle
	Anti-explosion	Explosion-proof motor&Explosion-proof inverterEX180W
	Frame material optional	Spray or spray PTFE
	Bath material	Fully304Stainless steel

Model	RE-1002	RE-2002	RE-5002	RE-10003
Voltage/Frequency	220V/50HZ	220V/50HZ	Rotation 220V/50HZ; Heating pot 380V/50HZ	380V/50HZ
Whole power	3120W	5120W	8180W	15160W
Rotary power	120W	120W	180W	120W 1/5
Heating power	3000W	5000W	8000W	15KW
Vacuum degree	0.0095Mpa	0.0095Mpa	0.0095Mpa	0.0095Mpa
Rotary flask volume	10L Φ280mm/Φ95 flange port	20L Φ355mm/Φ95 flange port	50L Φ470mm/Φ125 flange port	100L Φ610mm/Φ180 flange port
Receiving flask volume	5L Φ230mm/ upper Φ60 flange24# standard portdown Φ50 flange	10L Φ280mm/ upper with Φ60 flange port 24# standard port down with Φ50 flange	20L Φ355mm/ upper with Φ60 flange port24# standard portdown with Φ50 flange port	50L Φ470mm/ upper with Φ80 flange portΦ35 flange port down with Φ80 flange port
Rotary speed	0-120rpm/min	0-120rpm/min	0-120rpm/min	0-120rpm/min
Temp.cotrolling range	room temperature -180℃	room temperature -180℃	room temperature -180℃	room temperature -180℃
Temp. accuracy	±1℃	±1℃	±1℃	±1℃
Flask lifting distance	180mm	180mm	180mm	215mm
Condenser size	The main condensor Φ120620H(mm) ,upper Φ60 flangedown Φ80 flange The assisted condensor Φ135475H(mm) ,upper Φ80 flange down Φ60 flange*side Φ60 flange	The main condensor Φ130700H(mm), upper with Φ60 flangedown with Φ80 flange The assisted condensor Φ160530H(mm), upper with Φ80 flange down with Φ60 flange*side with Φ60 flange	The main condensor Φ160835H(mm) , upper with Φ60 flange port down with Φ80 flange port The assisted condensor Φ160530H(mm), upper with Φ80 flange down with Φ60 flange* side with Φ60 flange	The main condensor Φ230950H(mm), upper with Φ80 flange prot down with Φ263 flange port The assitsed condensor Φ230530H(mm) , upper with Φ263 flange port down with Φ80 flange port* side with Φ100 flange port
Condensation area	0.51(0.33+0.18)㎡	0.95(0.46+0.49)㎡	1.44(0.95+0.49)㎡	2.3 (1.5+0.8)㎡
Air guide bottle	left with Φ34 standard port, upper with 19# standard port, side with Φ60 flange port , right with Φ60 flange port	left with Φ34 standard port, upper with 19# standard port, side with Φ60 flange port , right with Φ60 flange port	left with Φ40 standard port, upper with 19# standard port, side with Φ60 flange prot, right with Φ70 flange port	left with Φ45 flange port, side with Φ100 flange port, right with Φ100 flange port
Charging valve	34# standard plug valve, feed nozzle (pagoda-shape connectors) outer diameter 12mm	34# standard plug valve, feed nozzle (pagoda-shape connectors) outer diameter 12mm	40# standard plug valve, feed nozzle (pagoda-shape connectors) outer diameter 12mm	Φ45 flange port，glass+PTFE valve，feed nozzle (pagoda-shape connectors) outer diameter 16mm
Multi-function port	19# standard plug valve, glass nozzle (pagoda-shape connectors) outer diameter 12mm	19# standard plug valve, glass nozzle (pagoda-shape connectors) outer diameter 12mm	19# standard plug valve, glass nozzle (pagoda-shape connectors) outer diameter 12mm	Φ35 flange port，glass+PTFE valve，feed nozzle (pagoda-shape connectors) outer diameter 12mm
Vacuum suction nozzle	Φ60 flange glass exhaustor, suction nozzle (pagoda-shape connectors) outer diameter 10mm	Φ60 flange glass exhaustor, suction nozzle (pagoda-shape connectors) outer diameter 10mm	Φ60 flange glass exhaustor, suction nozzle (pagoda-shape connectors) outer diameter 10mm	Φ80 flange port，suction nozzle (pagoda-shape connectors) outer diameter 16mm
Condensing coil in and out circuation nozzle	Pagoda-shape connectors, outer diameter 16mm	Pagoda-shape connectors, outer diameter 16mm	Pagoda-shape connectors, outer diameter 16mm	Pagoda-shape connectors, outer diameter 16mm
Vent valve	24#standard plug valve*2 vent nozzle（ (pagoda-shape connectors) outer diameter 12mm	24#standard plug valve*2 vent nozzle（ (pagoda-shape connectors) outer diameter 12mm	24#standard plug valve*2 vent nozzle（ (pagoda-shape connectors) outer diameter 12mm	Φ35 flange port*2，glass+PTFE valve，vent nozzle (pagoda-shape connectors) outer diameter 12mm
Baiting valve	Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 200mm from the floor	Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 200mm from the floor	Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 320mm from the floor	Φ80 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 260mm from the floor
Pot bravery size	Φ350*220H（mm) about 21L	Φ450*260H（mm) about 41L	Φ550*320H（mm) about 76L	Φ700*400H（mm) about 153L
Overall dimensions (WLH)	9305601910mm	10006002130mm	13307302340mm	17008502600mm
Net weight	74(49+25)kg	88.5kg(57+31.5)	119.5kg(82+37.5)	270kg
Packing dimensions	1320780755mm, 0.78m³	1350670720mm; 680680790mm，1.02m³	1420820720mm; 830730910mm, 1.39m³	16708601570, 2.25m³
Packing weight	107kg	136kg（90+46）	186kg(100+86)	366kg

Model: RE-3002
