Description:
Jacketed Glass Reactor (Double layer Glass Reactor) When the material is heated and reacted, the evaporation efficiency can be improved under vacuum condition (need to connect the vacuum device), and the solvent vapor can be cooled into liquid when it is cooled through the glass condensation coil (need to connect the cooling device), which can be refluxed back to kettle, and can also be recovered through the valve under the reflux elbow. When the reaction is finished, the material can be discharged from the side outlet at the bottom of the kettle.Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.
Working principle:

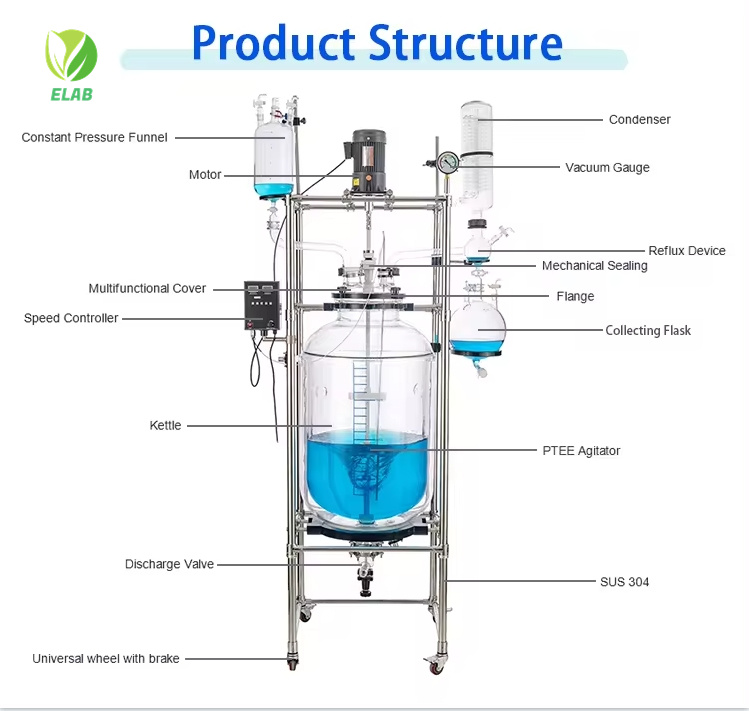

This Jacketed Glass Reactor (Double layer Glass Reactor) has electric constant speed stirring system, condensation and dropping system. The interlayer of kettle body needs to be connected with heating or cooling circulation equipment. When the material is stirred, the circulating hot solution or cooling liquid is injected through the interlayer to make the materials in the kettle are heated or cooled at a constant temperature. When the material is heated and reacted, the evaporation efficiency can be improved under vacuum conditions (a vacuum device need to be connected). The solvent vapor is cooled into liquid when passing through the glass condensing coil (a cooling device need to be connected), which can be refluxed into the kettle. It can also be recycled through the lower valve of the dean-stark. When the reaction is completed, the material can be discharged from the side outlet at the bottom of the kettle.
This series of products need to be equipped with a vacuum device, a high-temperature or low-temperature circulation device to form system devices.
Feature:
1.All parts in contact with materials are made of high borosilicate glass (expansion coefficient 3.3) and PTFE, which have stable performance and are not easy to react with materials, so it is easy and safe to use.
2.Frame-type main body, made of aluminum alloy + stainless steel, highly efficient and stable, beautiful and durable.3.Glass + PTFE discharge valve, no liquid accumulation side discharge, very fast recovery of solution.

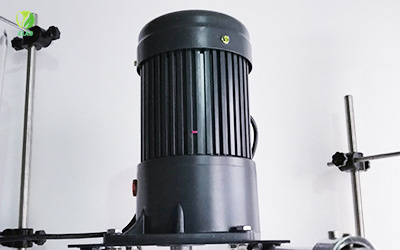

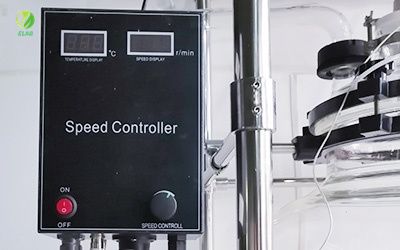

3.Low-speed force-increasing motor, electronic infinitely adjustable speed, fine adjustment by twisting, double-display speed box can digitally display the rotational speed and the temperature of materials in the kettle, with stable performance, clear display of the control and data plane, and easy to operate.

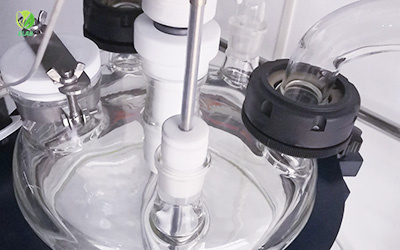

4.Stirring system adopts ceramic bearing and mechanical sealing to prevent the stirring rod from wearing and dropping chips, high temperature resistance, wear resistance and good sealing effect.
5.Adopt PT100 temperature sensor, 304 stainless steel material, coat transparent PTFE tube, double anti-corrosion.

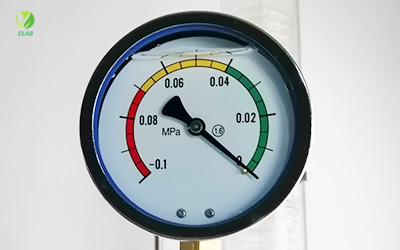

6.Vacuum pressure gauge shows real-time vacuum, pointer display.

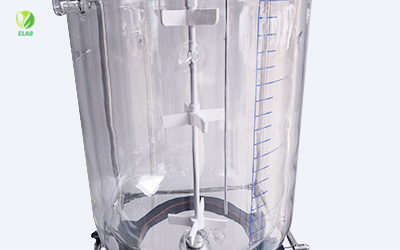

7.Crescent type stirring paddle, 304 stainless steel + PTFE stirring blade; stirring rod made of 304 stainless steel, jacketed PTFE tube, high strength and corrosion resistance.
8.The bottom of the machine is equipped with universal wheels with brakes, can be moved as a whole, easy to operate.
9. Fuse safety protection, to ensure the safe operation of the circuit.
