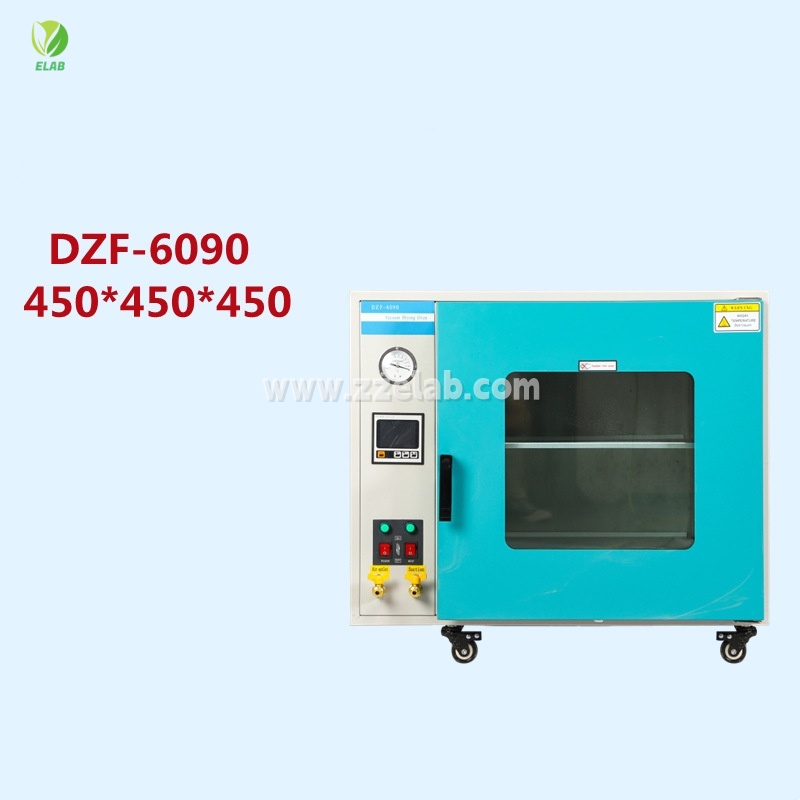

The vacuum drying oven is specially designed for drying heat-sensitive, easily decomposable and easily oxidizable substances. It can maintain a certain vacuum degree in the working room during operation and can be filled with inert gas. In particular, some items with complex ingredients can be dried quickly. With the advancement of technology, this product uses an intelligent digital temperature regulator to set, display and control the temperature, making it more convenient to use.
Description:
The vacuum drying oven is specially designed for drying heat-sensitive, easily decomposable and easily oxidizable substances. It can maintain a certain vacuum degree in the working room during operation and can be filled with inert gas. In particular, some items with complex ingredients can be dried quickly. With the advancement of technology, this product uses an intelligent digital temperature regulator to set, display and control the temperature, making it more convenient to use. It is widely used in research and application fields such as biochemistry, chemical pharmaceuticals, medical care, agricultural research, and environmental protection.
Feature:

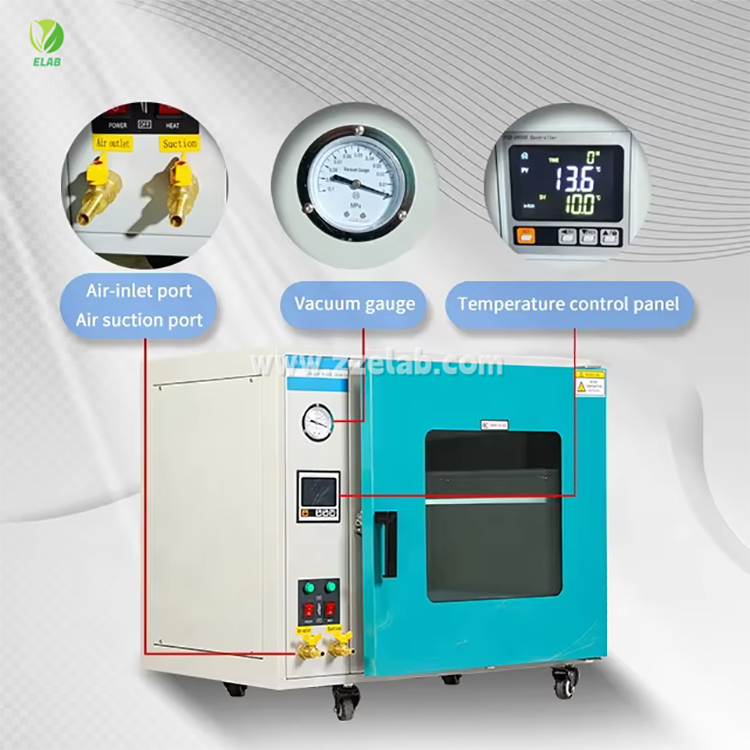

1. Microcomputer LCD intelligent temperature controller
2. Setting and internal temperature are displayed digitally at the same time
3. With timing function, the timing range is 1-9999min
4. With over-temperature alarm function
5.304 stainless steel liner, double-layer tempered glass door effectively protect all types of precision equipment, instruments.

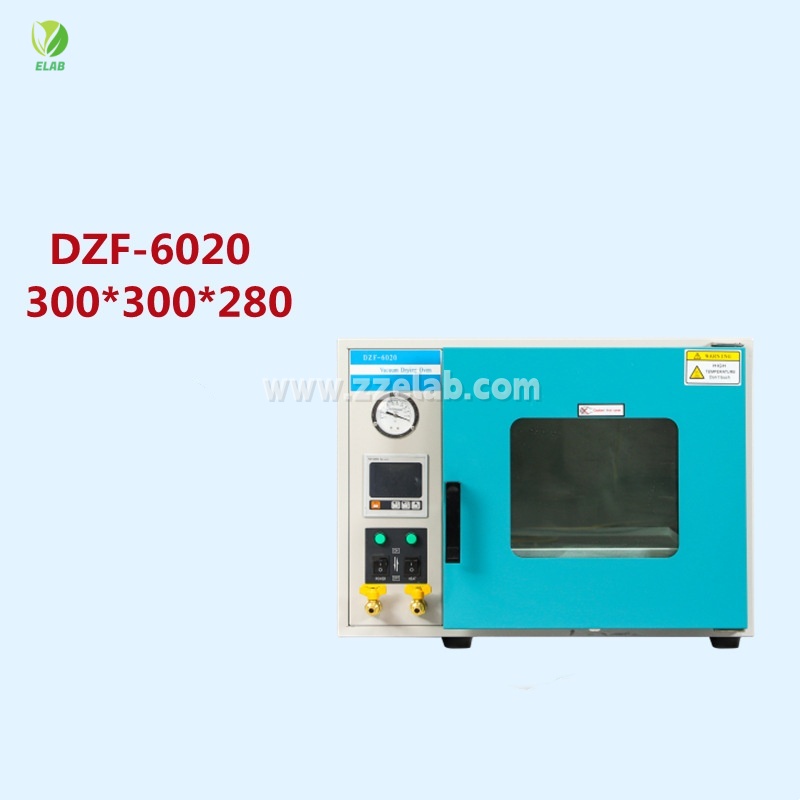

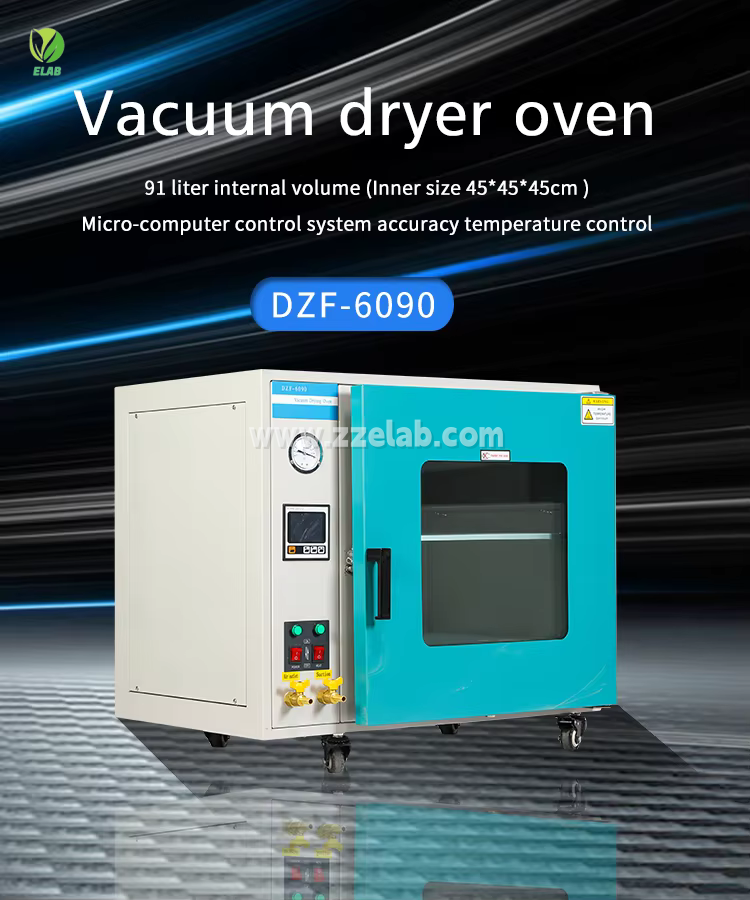

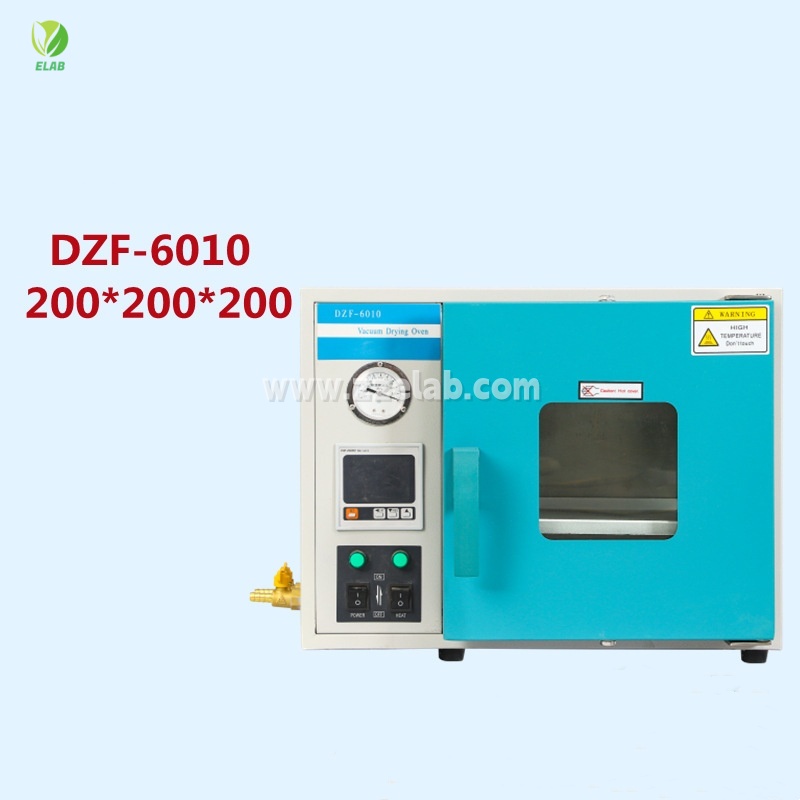

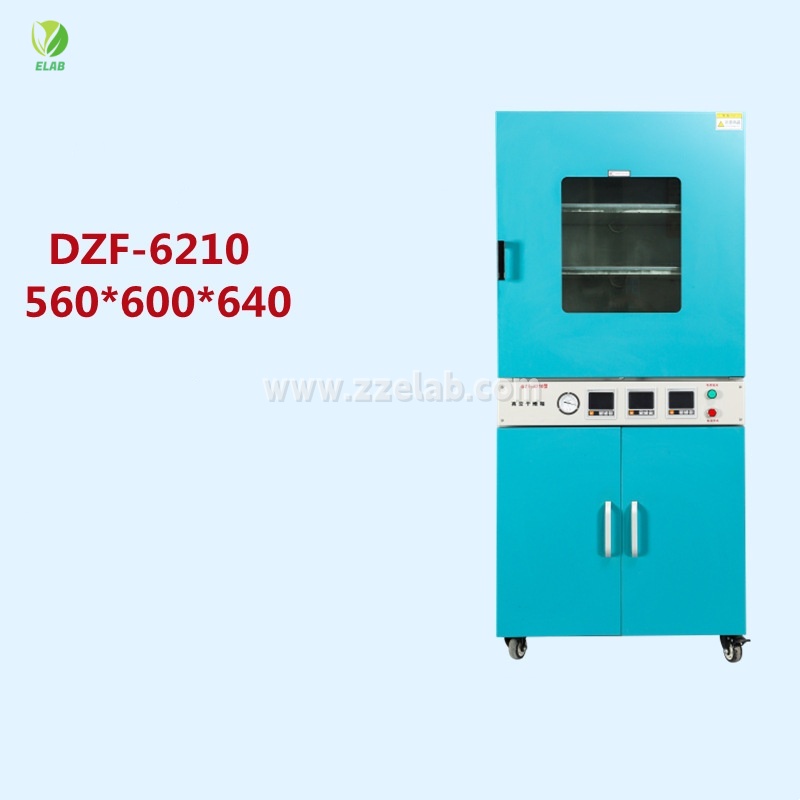

| Model | DZF-6010 | DZF-6020 | DZF-6050 | DZF-6090 | DZF-6210 | DZF-6500 |
|---|---|---|---|---|---|---|
| Shell Material | Spray-paint Anti-corrosion | |||||
| Liner Material | 304 Stainless Steel | |||||
| Temp. Range | RT+10~200°C | |||||
| Temp. Stability | ±1.0°C | |||||
| Temp. Analysis | 0.1°C | |||||
| Working Temp. | +5~40°C | |||||
| Vacuum degree | The lowest pumping temperature can reach -0.098mpa | |||||
| Input Power(W) | 400 | 700 | 1400 | 2000 | 2060 | 2800 |
| Chamber Capacity (L) | 8 | 25 | 55 | 91 | 215 | 431 |
| Inner Dimension (W*D*H, mm) | 200*200*200 | 300*300*280 | 400*400*345 | 450*450*450 | 560*600*640 | 630*810*845 |
| Overall Dimension (W*D*H, mm) | 595*420*420 | 630*510*475 | 715*570*540 | 770*630*700 | 760*790*1770 | 930*1050*1990 |
| Shelves (Pcs) | 1 | 2 | 3 | 4 | ||
| Time Range | 1~9999 min | |||||

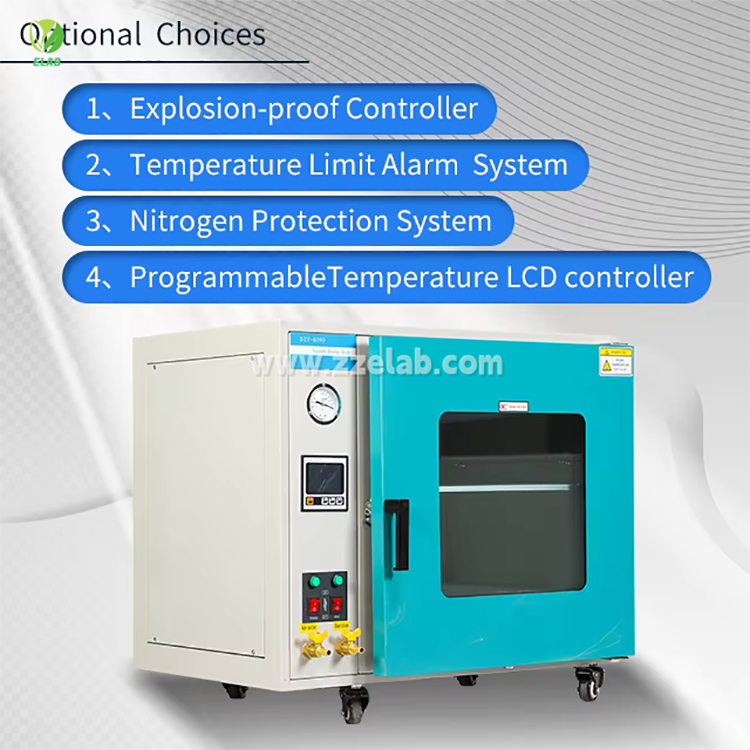

| Optional Configuration | Explosion-proof | |||||
We have got an exceptionally passionate team here at Zhengzhou Elab Instrument Co., Ltd. ready to help you find possible solutions for optimum performance.
