Description:
The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The principle is to heat the rotating bottle at a constant speed under vacuum conditions, and the material forms a large-area film on the bottle wall, which evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency. It is especially suitable for the concentration and purification of biological products that are easily decomposed and denatured at high temperature.
Feature:

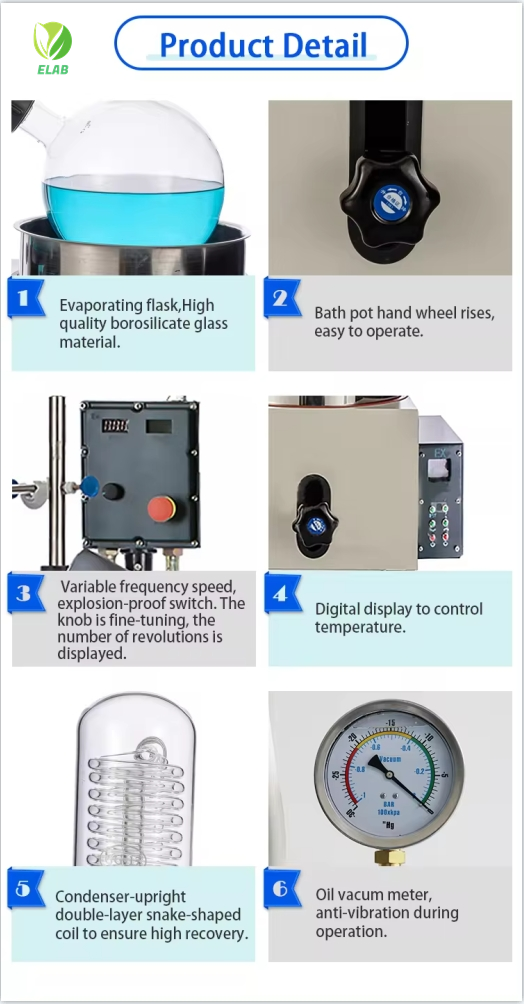

1.All of the high boric silicon glass (expansion coefficient 3.3) and polytetrafluoride material are all used in contact with the material contact portion, and the performance is stable, and it is not easy to chemically react with materials.
2.The main bracket uses cold plate anti-corrosion spray + aluminum alloy material, and has strong anti-corrosion characteristics. Pot bile adopts stainless steel quality, compact structure, durable, beautiful appearance;
3. The sealing system uses the polytetrafluoroethylene + fluororubber combination seal to maintain high vacuum;
4.Vacuum pressure gauge display real-time vacuum, pointer display;
5.The piston feeding valve sleeve piratifores lengthen tubes, which can be continuously fed to evaporation bottles in a vacuum state, which is convenient for customers.
6.Integrated condenser, upright double-layer snake-shaped coil to ensure high recovery;
7. Variable frequency speed, explosion-proof switch. The knob is fine-tuning, the number of revolutions is displayed;
8. Constant temperature bath temperature digital display, K-type sensor + stainless steel probe, fast transmission temperature
9. Bath pot hand wheel rises, easy to operate;
10. Electric explosion-proof, variable frequency speed aluminum shell explosion-proof, control plate aluminum shell explosion-proof, cable wear explosion pipe.
