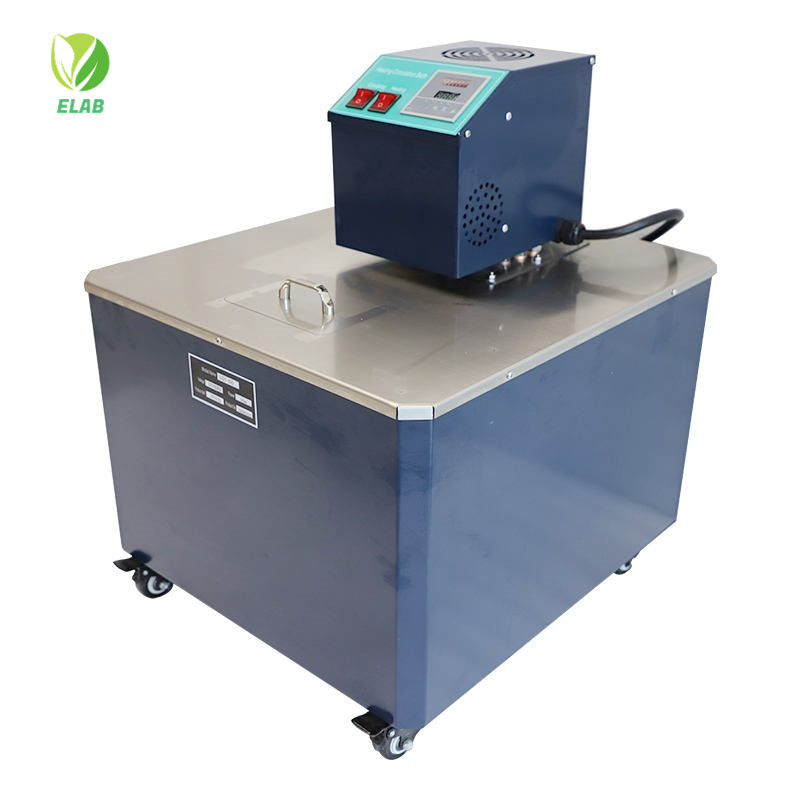

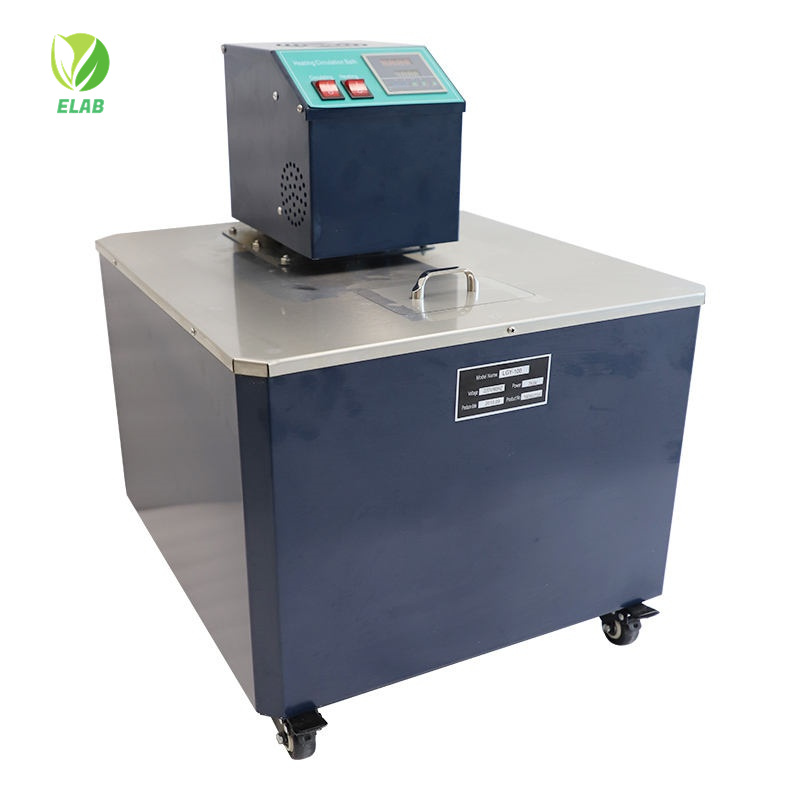

GY-100 High Temperature Circulator

Model: GY-100

High temperature circulator bath tanks are suitable for both internal and external temperature control. High temperature circulator is our design of a high temperature heat source, suitable for jacketed reactor, chemical reaction, high temperature distillation, semiconductor industry.

Introduction
Specifications
Comparisons

Description:

High temperature circulator bath tanks are suitable for both internal and external temperature control.

High temperature circulator is our design of a high temperature heat source, suitable for jacketed reactor, chemical reaction, high temperature distillation, semiconductor industry.

Feature:

1. High temperature circulator is suitable for fermenter, jacketed glass reactor and other things.

2. Outside circulation could rise the temperature in the jacket, therefore materials in which would react.

3. Temperature fluctuation is in ±0.2°C.

4. Resolution of digital display is 0.1°C.

5. Flow of outer circulation is 5~10L/min.

6. Auto-alarm of over temperature.

7. Stop heating when the temperature is over.

8. Our high temperature adopts the newest control technique, easy to operate, great stability and high precise.

9. The PID can be set by yourself.

10. Microcomputer intelligent could modify the error of measuring value.

Model	GY-100
Voltage	380V 50Hz
Total power	8250W
Pump motor power	250W
Heating power	8000W
Flow	12L/min
Lifting height	7M
Temperature range	RT~250°C
Temperature accuracy	± 1°C
Joint port and tube	screw joint, 2m metal pipe
Tank size	480x410x330mm about 65L
Tank oil volume	More than 45L
Dimension	500x580x660mm
Net. Weight	40kg
Package size	700x635x580mm
Package weight	45kg
