Description:

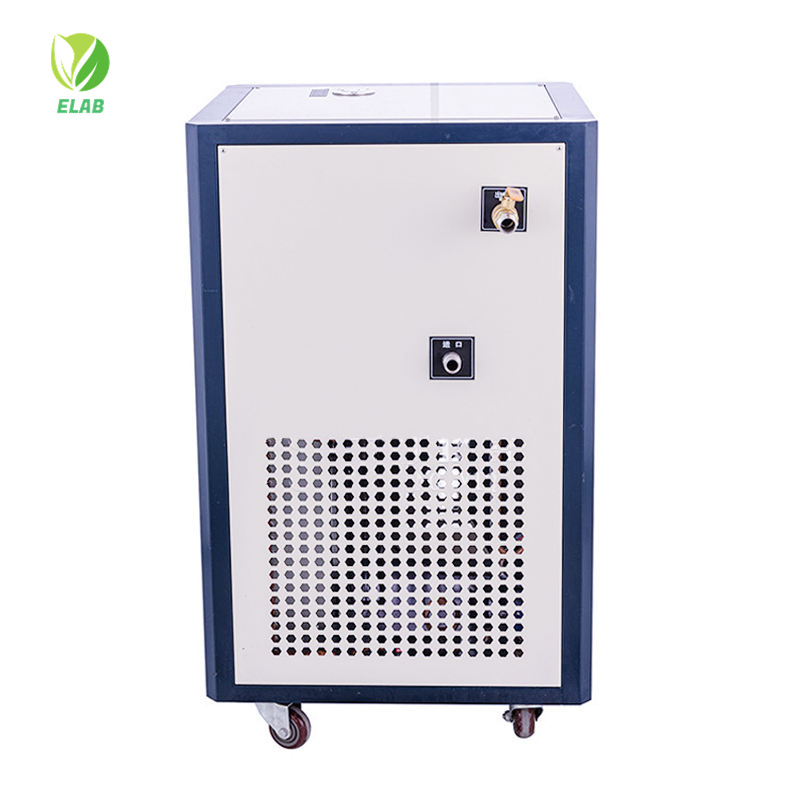

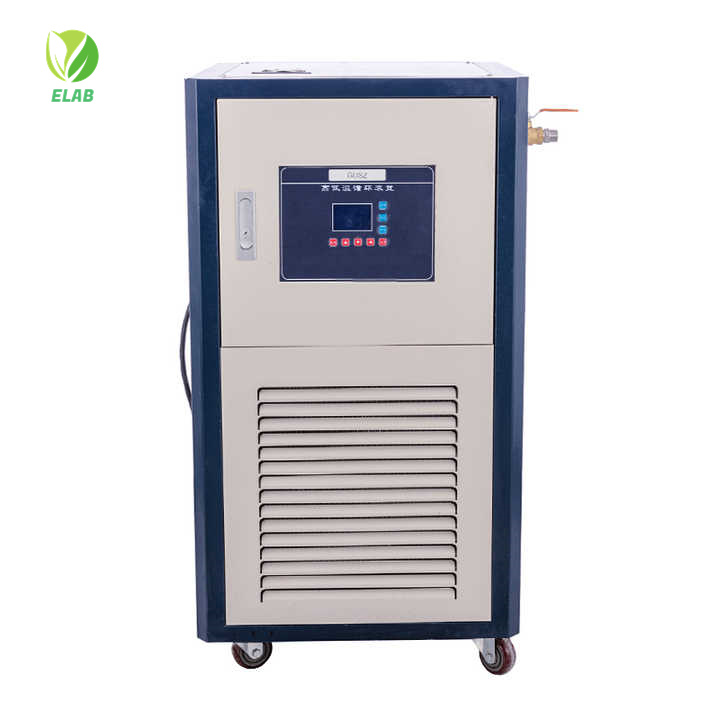

Heating And Cooling Circulator including: cooling function, heating function circulation system. It is composed of refrigeration unit, heating unit, circulation system and control system. Refrigeration part is mechanically refrigerated by a fully enclosed compressor, composed of plate heat exchange, expansion valves, and pressure protectors to meet the cooling requirements.
Heating part is the use of electric heating tubes to heat the circulating fluid. And through the built-in circulating pump and the external circulating pipeline, the refrigerant or heat medium is transported to the interlayer of the supporting equipment, which indirectly cools and heats the materials in the reactor.
During external circulation, connect the upper outlet pipe of the product to the lower inlet pipe of the kettle body, and the circulating fluid will return to the lower return port of the product through the pipe from the upper circulation port to form a complete circulation space.
Feature:
1.It is divided into three system:refrigerating system,heating system and pre-cooling system.Three systems can be used continuously and separately.
2.Cold me Fast heating and cooling,temperature can be increased and lowered continuously.
3.With the function of self-diagnosis,refrigerator protecting time,freezer high-pressure switch,overload relays,thermal protection devices and other safety functions.Wide temperature control range,the heat transfer fluid is not easy to volatilize and oxidize at high temperature,or not easy to absorb conducting medium
4.Complete closed circulating system,the heat fluid is not easy to volatilize and oxidize at high temperature,or not easy to absorb moisture under low temperature,which can prolong the service life of heat transfer fluid.
5.High temperature cooling and refrigeration function,can lower from high temperature level directly.
