| Voltage/Frequency |
220V/50HZ |
220V/50HZ |
Rotation 220V/50HZ; Heating pot 380V/50HZ |
380V/50HZ |
| Whole power |
3120W |
5120W |
8180W |
15160W |
| Rotary power |
120W |
120W |
180W |
120W 1/5 |
| Heating power |
3000W |
5000W |
8000W |
15KW |
| Vacuum degree |
0.0095Mpa |
0.0095Mpa |
0.0095Mpa |
0.0095Mpa |

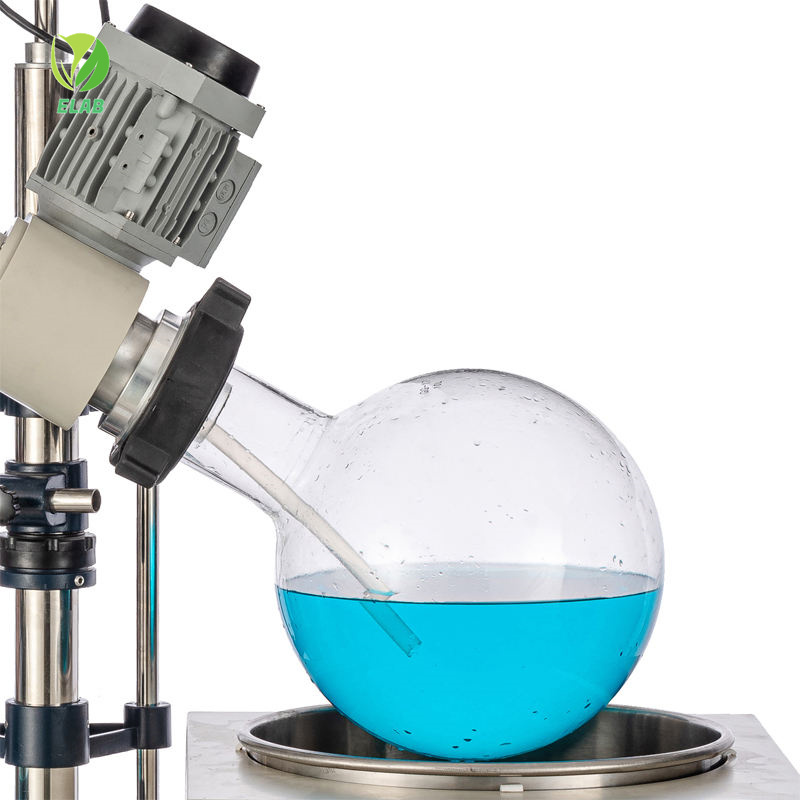

| Rotary flask volume |
10L Φ280mm/Φ95 flange port |
20L Φ355mm/Φ95 flange port |
50L Φ470mm/Φ125 flange port |
100L Φ610mm/Φ180 flange port |

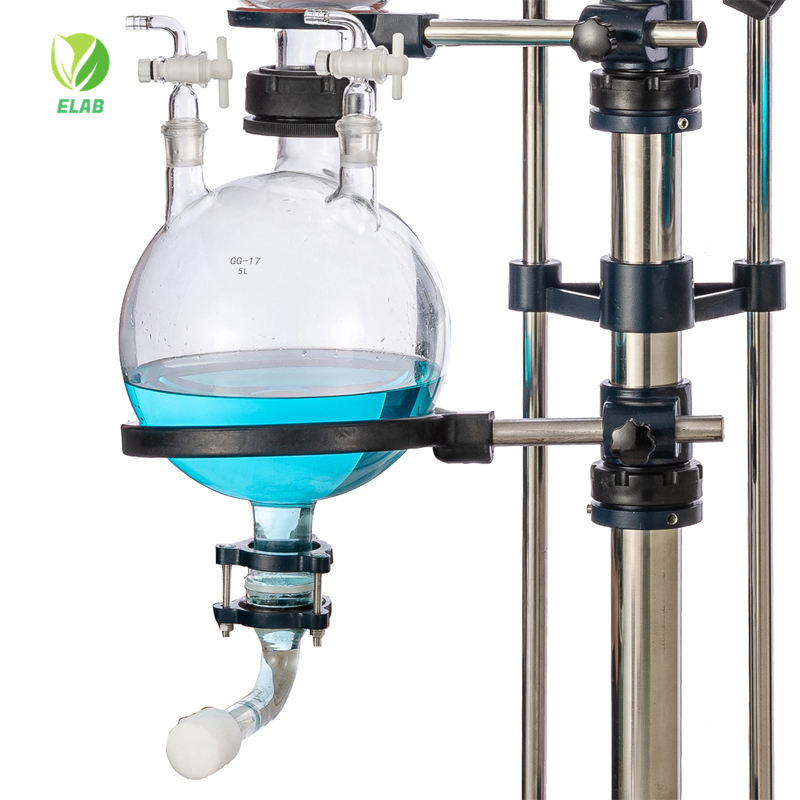

| Receiving flask volume |
5L Φ230mm/ upper Φ60 flange*24# standard port*down Φ50 flange |
10L Φ280mm/ upper with Φ60 flange port *24# standard port* down with Φ50 flange |
20L Φ355mm/ upper with Φ60 flange port*24# standard port*down with Φ50 flange port |
50L Φ470mm/ upper with Φ80 flange port*Φ35 flange port * down with Φ80 flange port |
| Rotary speed |
0-120rpm/min |
0-120rpm/min |
0-120rpm/min |
0-120rpm/min |
| Temp.cotrolling range |
room temperature -180℃ |
room temperature -180℃ |
room temperature -180℃ |
room temperature -180℃ |
| Temp. accuracy |
±1℃ |
±1℃ |
±1℃ |
±1℃ |
| Flask lifting distance |
180mm |
180mm |
180mm |
215mm |

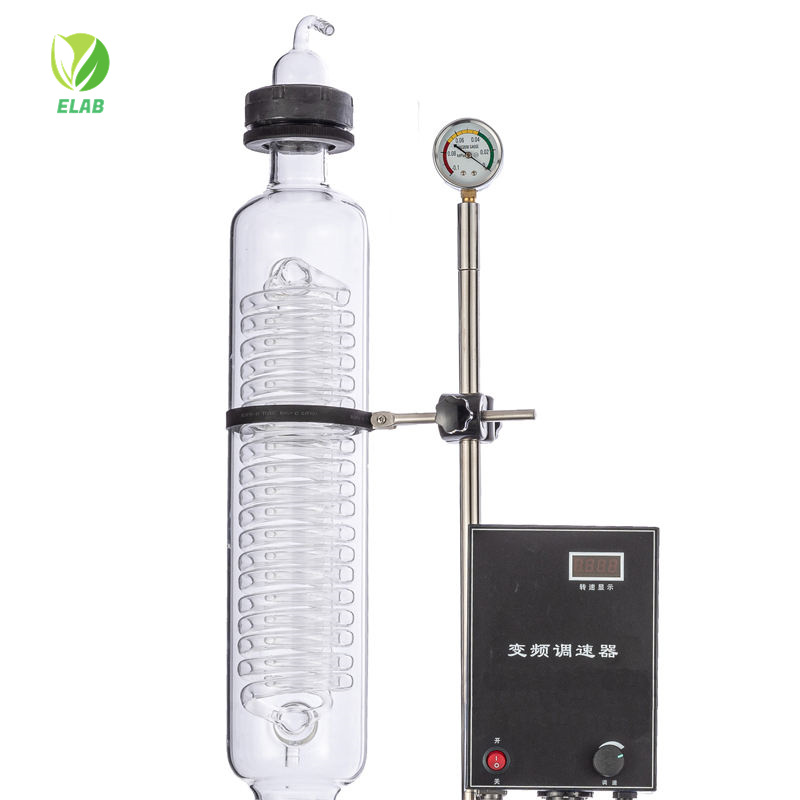

| Condenser size |
The main condensor Φ120*620H(mm) ,upper Φ60 flange*down Φ80 flange
The assisted condensor Φ135*475H(mm) ,upper Φ80 flange* down Φ60 flange*side Φ60 flange |
The main condensor Φ130*700H(mm), upper with Φ60 flange*down with Φ80 flange
The assisted condensor Φ160*530H(mm), upper with Φ80 flange * down with Φ60 flange*side with Φ60 flange |
The main condensor Φ160*835H(mm) , upper with Φ60 flange port* down with Φ80 flange port
The assisted condensor Φ160*530H(mm), upper with Φ80 flange * down with Φ60 flange* side with Φ60 flange |
The main condensor Φ230*950H(mm), upper with Φ80 flange prot* down with Φ263 flange port
The assitsed condensor Φ230*530H(mm) , upper with Φ263 flange port* down with Φ80 flange port* side with Φ100 flange port |
| Condensation area |
0.51(0.33+0.18)㎡ |
0.95(0.46+0.49)㎡ |
1.44(0.95+0.49)㎡ |
2.3 (1.5+0.8)㎡ |

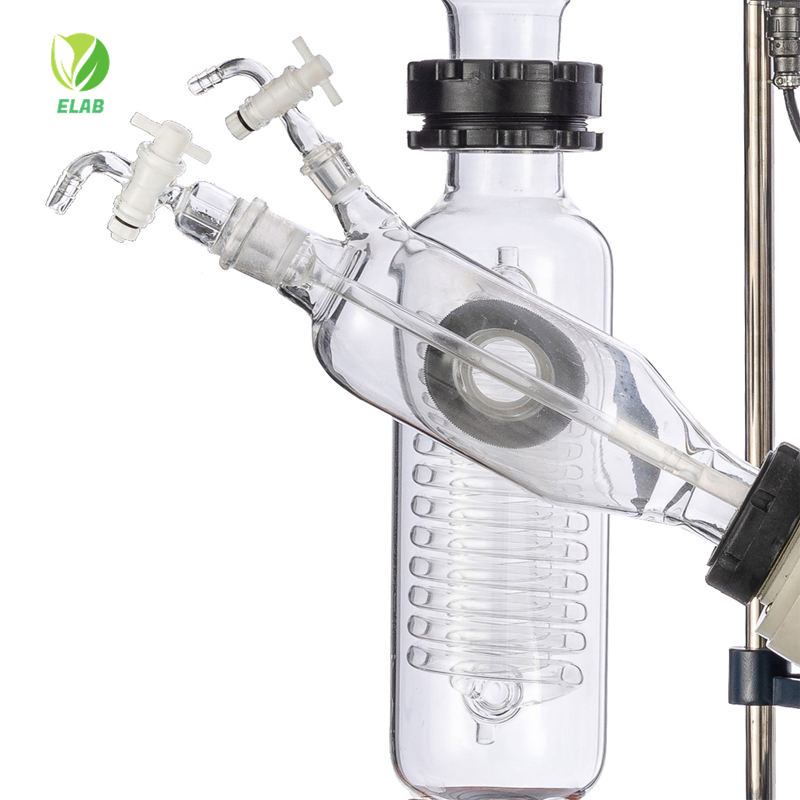

| Air guide bottle |
left with Φ34 standard port, upper with 19# standard port, side with Φ60 flange port , right with Φ60 flange port |
left with Φ34 standard port, upper with 19# standard port, side with Φ60 flange port , right with Φ60 flange port |
left with Φ40 standard port, upper with 19# standard port, side with Φ60 flange prot, right with Φ70 flange port |
left with Φ45 flange port, side with Φ100 flange port, right with Φ100 flange port |
| Charging valve |
34# standard plug valve, feed nozzle (pagoda-shape connectors) outer diameter 12mm |
34# standard plug valve, feed nozzle (pagoda-shape connectors) outer diameter 12mm |
40# standard plug valve, feed nozzle (pagoda-shape connectors) outer diameter 12mm |
Φ45 flange port，glass+PTFE valve，feed nozzle (pagoda-shape connectors) outer diameter 16mm |
| Multi-function port |
19# standard plug valve, glass nozzle (pagoda-shape connectors) outer diameter 12mm |
19# standard plug valve, glass nozzle (pagoda-shape connectors) outer diameter 12mm |
19# standard plug valve, glass nozzle (pagoda-shape connectors) outer diameter 12mm |
Φ35 flange port，glass+PTFE valve，feed nozzle (pagoda-shape connectors) outer diameter 12mm |
| Vacuum suction nozzle |
Φ60 flange glass exhaustor, suction nozzle (pagoda-shape connectors) outer diameter 10mm |
Φ60 flange glass exhaustor, suction nozzle (pagoda-shape connectors) outer diameter 10mm |
Φ60 flange glass exhaustor, suction nozzle (pagoda-shape connectors) outer diameter 10mm |
Φ80 flange port，suction nozzle (pagoda-shape connectors) outer diameter 16mm |
| Condensing coil in and out circuation nozzle |
Pagoda-shape connectors, outer diameter 16mm |
Pagoda-shape connectors, outer diameter 16mm |
Pagoda-shape connectors, outer diameter 16mm |
Pagoda-shape connectors, outer diameter 16mm |
| Vent valve |
24#standard plug valve*2 vent nozzle（ (pagoda-shape connectors) outer diameter 12mm |
24#standard plug valve*2 vent nozzle（ (pagoda-shape connectors) outer diameter 12mm |
24#standard plug valve*2 vent nozzle（ (pagoda-shape connectors) outer diameter 12mm |
Φ35 flange port*2，glass+PTFE valve，vent nozzle (pagoda-shape connectors) outer diameter 12mm |
| Baiting valve |
Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 200mm from the floor |
Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 200mm from the floor |
Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 320mm from the floor |
Φ80 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 260mm from the floor |

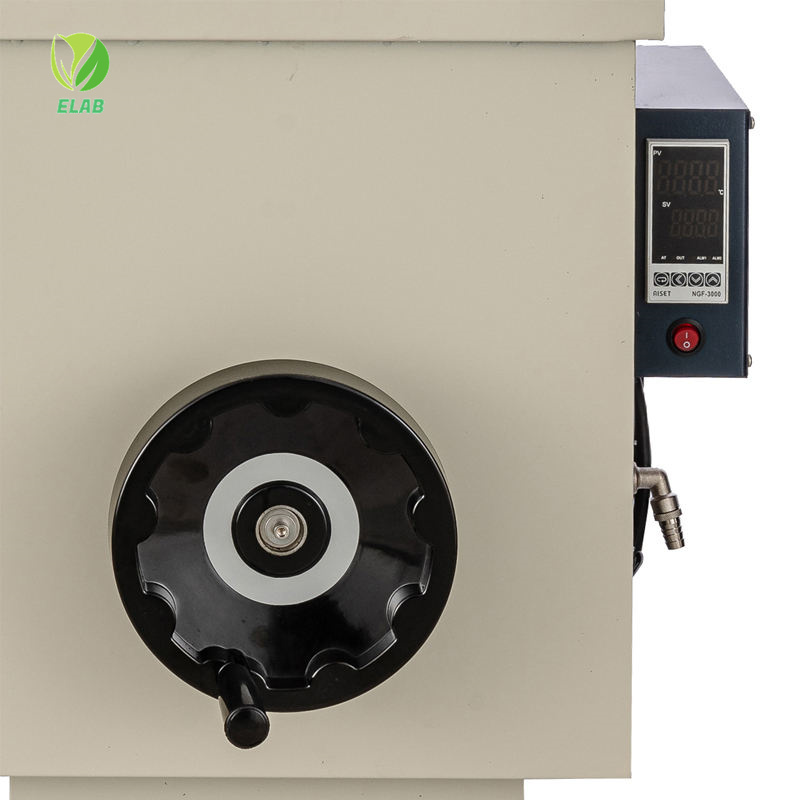

| Pot bravery size |
Φ350*220H（mm) about 21L |
Φ450*260H（mm) about 41L |
Φ550*320H（mm) about 76L |
Φ700*400H（mm) about 153L |
| Overall dimensions (W*L*H) |
930*560*1910mm |
1000*600*2130mm |
1330*730*2340mm |
1700*850*2600mm |
| Net weight |
74(49+25)kg |
88.5kg(57+31.5) |
119.5kg(82+37.5) |
270kg |
| Packing dimensions |
1320*780*755mm, 0.78m³ |
1350*670*720mm; 680*680*790mm，1.02m³ |
1420*820*720mm; 830*730*910mm, 1.39m³ |
1670*860*1570, 2.25m³ |
| Packing weight |
107kg |
136kg（90+46） |
186kg(100+86) |
366kg |
