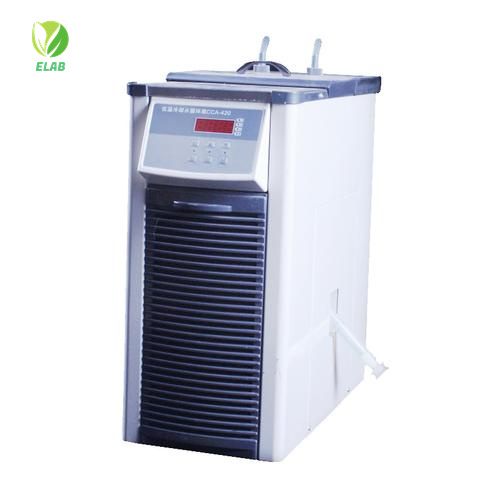

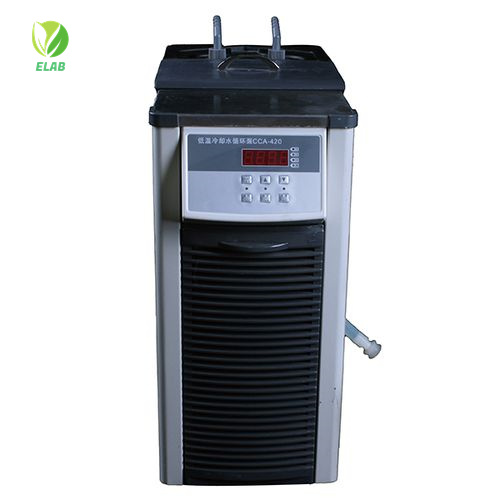

CCA-420 low-temperature chilling circulator

Model: CCA-420

Adoption of low-temperature chilling circulator of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temperature and store chemical and biological products under low-temperature. Besides,low temperature circulating chiller can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, Muti-purpose Circulating Water Vacuum Pump.

Introduction
Specifications
Comparisons

Description:

Adoption of low-temperature chilling circulator of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temperature and store chemical and biological products under low-temperature. Besides, it can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, Muti-purpose Circulating Water Vacuum Pump.

Feature:

1, large-capacity open bath and external circulation in one, that is, can be used as a freezing tank, but also

It can provide coolant externally.

2、Temperature LCD screen display, key operation, simple and eye-catching.

3、With time-delay and over-current protection device, safe and risk-free.

4、PT100 temperature sensor.

5, refrigeration compressor and other key components using well-known brands, high reliability and high efficiency.

6、The circulatory system adopts polymer anti-corrosion materials, which can prevent rust, corrosion and low

temperature liquid pollution.

Name	Low temperature cooling liquid circulating pump
Model	CCA-420
Usage temperature range	-20 ~room temperature
Environment temperature	5 ~35 ℃
Environment humidity	≤70% ventilation
Power supply	220V/50Hz, 110V/60Hz
Safety protection	Delay, over-current
Display	LCD display, key operation
Temperature control accuracy	±0.1℃
Sensor	PT100
Total power	640W
Compressor	Specification	Small 1P
	Quantity	1
	Power	500W
	Refrigerating capacity	1550W
Circulation pump	Power	100W
	Lift	1.5-2.7M
	Flow	8-16L/min
	Pressure	≤0.4MPa
Air-cooling condenser	Power	40W
	Heat exchange area	3.8m2
	Air volume	584m³/h
Refrigerants	R134A
Condensation coil	Φ8 Nickel plated copper tube
Equipment material	Cold plate anti-corrosive spray
Water tank dimension & volume	220×155×120mm	About 4L
Cover opening	155×105mm
External circulation interface	Pagoda joint with Φ12mm outer diameter
Overall dimension(WDH)	250×520×560mm
Net weight	28KG
Packing dimension	580×310×560mm carton package 0.1m³
Packing weight	30KG
