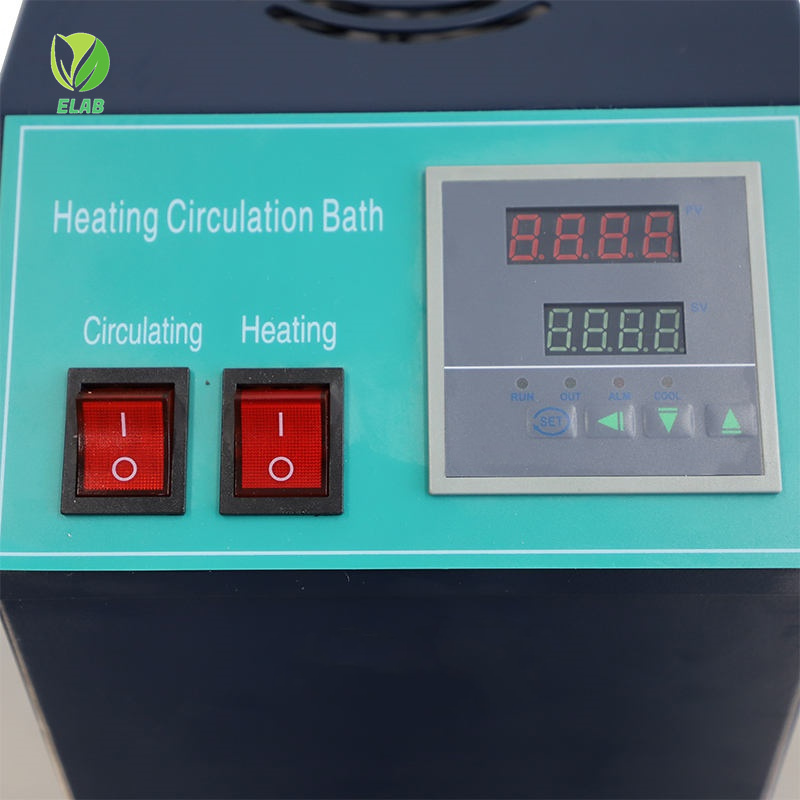

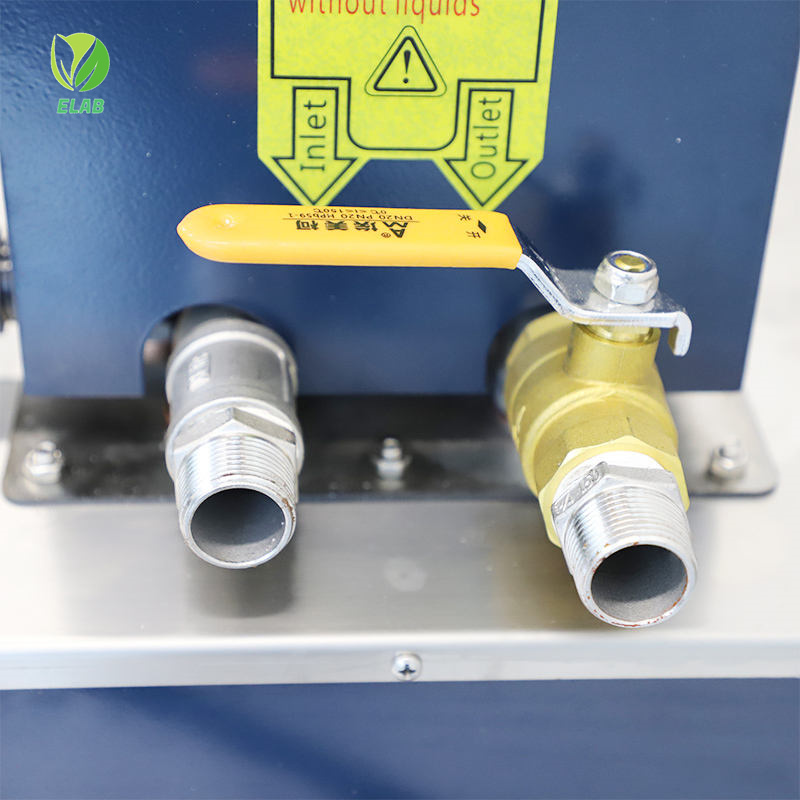

GY-20 High Temperature Circulator

Model: GY-20

High temperature circulator bath tanks are suitable for both internal and external temperature control. High temperature circulator is our design of a high temperature heat source, suitable for jacketed reactor, chemical reaction, high temperature distillation, semiconductor industry.

Introduction
Specifications
Comparisons

Description:

High temperature circulator bath tanks are suitable for both internal and external temperature control.

High temperature circulator is our design of a high temperature heat source, suitable for jacketed reactor, chemical reaction, high temperature distillation, semiconductor industry.

Feature:

1. High temperature circulator is suitable for fermenter, jacketed glass reactor and other things.

2. Outside circulation could rise the temperature in the jacket, therefore materials in which would react.

3. Temperature fluctuation is in ±0.2°C.

4. Resolution of digital display is 0.1°C.

5. Flow of outer circulation is 5~10L/min.

6. Auto-alarm of over temperature.

7. Stop heating when the temperature is over.

8. Our high temperature adopts the newest control technique, easy to operate, great stability and high precise.

9. The PID can be set by yourself.

10. Microcomputer intelligent could modify the error of measuring value.

Model	GY-20
Matched glass reactor	10-20L
Material	304 stainless steel
Connecting pipe	stainless steel bellows
Temperature control mode	Intelligent temperature control
Temperature display mode	K type sensor digital display
Temperature range	0-300℃
Temperature accuracy	±1℃
Inner size (mmmmmm)	390280255
Overall size(mmmmmm)	630400630
Packing size (mmmmmm)	730500830
Gross weight（KG）	33
