10L-50L Explosion Proof Rotary Evaporator

Model: RE-1002Ex/RE-2002Ex/RE-5002Ex

The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The explosion-proof rotary evaporator is especially suitable for the concentration and purification of biological products that are easily decomposed and denatured at high temperature.

Introduction
Specifications
Comparisons

Description:

The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The principle is to heat the rotating bottle at a constant speed under vacuum conditions, and the material forms a large-area film on the bottle wall, which evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency. It is especially suitable for the concentration and purification of biological products that are easily decomposed and denatured at high temperature.

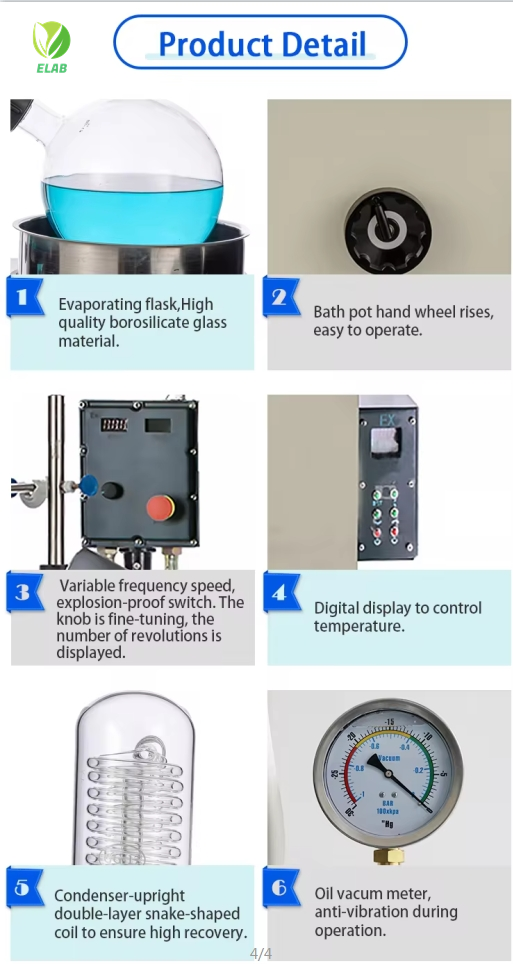

Feature:

1.All of the high boric silicon glass (expansion coefficient 3.3) and polytetrafluoride material are all used in contact with the material contact portion, and the performance is stable, and it is not easy to chemically react with materials.

2.The main bracket uses cold plate anti-corrosion spray + aluminum alloy material, and has strong anti-corrosion characteristics. Pot bile adopts stainless steel quality, compact structure, durable, beautiful appearance;

3. The sealing system uses the polytetrafluoroethylene + fluororubber combination seal to maintain high vacuum;

4.Vacuum pressure gauge display real-time vacuum, pointer display;

5.The piston feeding valve sleeve piratifores lengthen tubes, which can be continuously fed to evaporation bottles in a vacuum state, which is convenient for customers.

6.Integrated condenser, upright double-layer snake-shaped coil to ensure high recovery;

7.Variable frequency speed, explosion-proof switch. The knob is fine-tuning, the number of revolutions is displayed;

8. Constant temperature bath temperature digital display, K-type sensor + stainless steel probe, fast transmission temperature

9. Bath pot hand wheel rises, easy to operate;

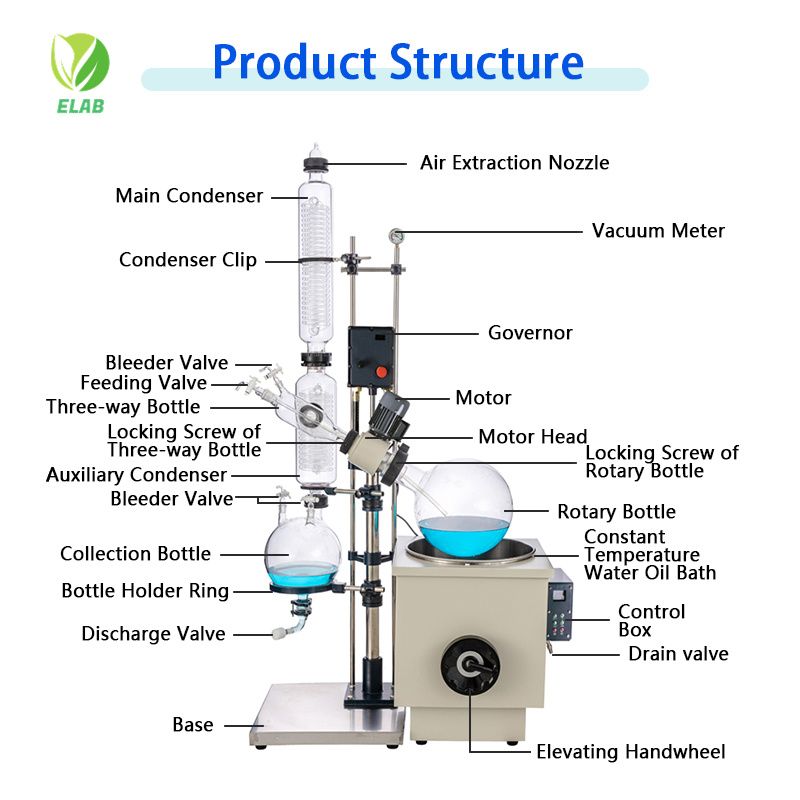

10. Electric explosion-proof, variable frequency speed aluminum shell explosion-proof, control plate aluminum shell explosion-proof, cable wear explosion pipe. 详情1.jpg 详情2.png

Model	RE-1002Ex	RE-2002Ex	RE-5002Ex
Voltage/Frequency	220V/50HZ	220V/50HZ	Rotation 220V/50HZ; Heating pot 380V/50HZ
Whole power	3120W	5120W	8180W
Rotary power	EX120W	EX120W	EX180W
Heating power	3000W	5000W	8000W
Vacuum degree	0.0095Mpa	0.0095Mpa	0.0095Mpa
Rotary flask volume	10L Φ280mm/Φ95 flange port	20L Φ355mm/Φ95 flange port	50L Φ470mm/Φ125 flange port
Receiving flask volume	5L Φ230mm/ upper with Φ60 flange port24# standard port down with Φ50 flange port	10L Φ280mm/ upper with Φ60 flange port 24# standard port down with Φ50 flange port	20L Φ355mm/ upper with Φ60 flange port 24# standard port down with tΦ50 flange port
Rotary speed	0-120rpm/min	0-120rpm/min	0-120rpm/min
Temp.cotrolling range	room temperature -180℃	room temperature -180℃	room temperature -180℃
Temp. accuracy	±1℃	±1℃	±1℃
Flask lifting distance	180mm	180mm	180mm
Condenser size	The main condenser Φ120620H(mm) ,upper with Φ60 flange port down with Φ80 flange port The assisted condenser Φ135475H(mm) , upper with Φ80 standard port down with Φ60 flange port* side with Φ60 flange port	The main condenser Φ130700H(mm) , upper with Φ60 flange port down with Φ80 flange port The assisted condenser condenser Φ160530H(mm) ,upper with Φ80 flange port down with Φ60 flange port* side with Φ60 flange port	The main condenser Φ160835H(mm) ,upper with Φ60 flange port down with Φ80 flange port The assisted condenser Φ160530H(mm) ,upper with Φ80 flange port down with Φ60 flange port*side with Φ60 flange port
Condensation area	0.51(0.33+0.18)㎡	0.95(0.46+0.49)㎡	1.44(0.95+0.49)㎡
Air guide bottle	left with Φ34 standard port , upper with 19# standard port, side with Φ60 flange port, right with Φ60 flange port	left with Φ34 standard port , upper with 19# standard port, side with Φ60 flange port, right with Φ60 flange port	left with Φ40 standard port, upper with 19# standard port, side with Φ60 flange port, right with Φ70 flange port
Charging valve	34# standard plug valve, feed nozzle ( Pagoda-shape connectors), outer diameter 12mm	34# standard plug valve, feed nozzle ( Pagoda-shape connectors), outer diameter 12mm	40# standard plug valve, feed nozzle ( Pagoda-shape connectors), outer diameter 12mm
Multi-function port	19# standard plug valve, glass nozzle (Pagoda-shape connectors), outer diameter 12mm	19# standard plug valve, glass nozzle (Pagoda-shape connectors), outer diameter 12mm	19# standard plug valve, glass nozzle (Pagoda-shape connectors), outer diameter 12mm
Vacuum suction nozzle	Φ60 flange glass exhaust pipe, suction nozzle (Pagoda-shape connectors), outer diameter 10mm	Φ60 flange glass exhaust pipe, suction nozzle (Pagoda-shape connectors), outer diameter 10mm	Φ60 flange glass exhaust pipe, suction nozzle (Pagoda-shape connectors), outer diameter 10mm
Condensing coil in and out circulation nozzle	Pagoda-shape connectors, outer diameter 16mm	Pagoda-shape connectors, outer diameter 16mm	Pagoda-shape connectors, outer diameter 16mm
Vent valve	24# standard plug valve*2 vent nozzle(Pagoda-shape connectors), outer diameter 12mm	24# standard plug valve*2 vent nozzle(Pagoda-shape connectors), outer diameter 12mm	24# standard plug valve*2 vent nozzle(Pagoda-shape connectors), outer diameter 12mm
Baiting valve	Φ50 flange port，Side discharging nozzle (pagoda-shape connectors), outer diameter 20mm, 200 from the floor	Φ50 flange port，Side discharging nozzle (pagoda-shape connectors), outer diameter 20mm, 200 from the floor	Φ50 flange port，Side discharging nozzle (pagoda-shape connectors), outer diameter 20mm, 320 from the floor
Pot bravery size	Φ350*220H（mm) about 21L	Φ450*260H（mm) about 41L	Φ550*320H（mm) about 76L
Overall dimensions (WLH)	9305601910mm	10006002130mm	13307302340mm
Net weight	83kg(52.5+30.5)	97kg(60.5+36.5)	128kg(85.5+42.5)
Packing dimensions	1320780755mm, 0.78m³	1350670720mm; 680680790mm,1.02m³	1420820720mm; 830730910mm, 1.39m³
Packing weight	116kg	143kg（88+55）	195kg(103+92)
