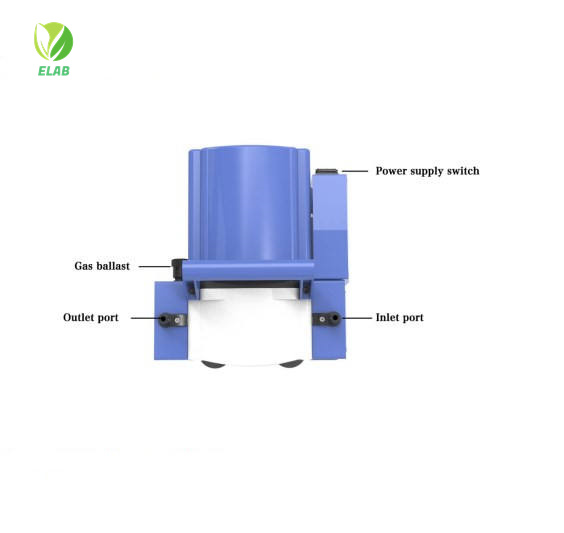

Anti-corrosive diaphragm vacuum pump

Model: DVP-633

Diaphragm vacuum pump has the features of advanced design, higher efficiency, and long life,which is the new product interated with new and high technologies. Except for the applications of circulating water vacuum and rotary vane, Diaphragm vacuum pump is also widely used in medicinal products analysis, tenuously chemical engineering, biochemical pharmacy, food examination, investigating and solving criminal case and other spheres.

Introduction
Specifications
Comparisons

Description:

Diaphragm vacuum pump has the features of advanced design, higher efficiency, and long life,which is the new product interated with new and high technologies. Except for the applications of circulating water vacuum and rotary vane, it is also widely used in medicinal products analysis, tenuously chemical engineering, biochemical pharmacy, food examination, investigating and solving criminal case and other spheres. It is an ideal product for the high accuracy chromatogram apparatus, and the essential equipment in the laboratory

Feature:

The DVP series diaphragm vacuum pump is required to be installed indoors and can be used in conjunction with other products to provide pressure conditions for experimentation or production.

Application scope:

a) Evaporation and distillation test equipment;

b) Concentrator;

c) Vacuum drying oven

d) Reactor;

e) Negative pressure filtration test, solid-phase extraction test

Model	DVP–633
Ambient temperature(℃)	5 – 35
Relative humidity (%)	≤ 70
Motor power(W)	200
Maximum vacuum degree/ultimate pressure*(Pa/ mbar)	600/6
Power supply	220 – 240V~,50Hz
Maximum pumping rate(L/min)	33
Inner diameter of inlet nozzle(mm)	Ø7
Inner diameter of outlet nozzle(mm)	Ø7
Connection hose for inlet and outlet nozzles	Ø14×Ø8
Case protection class	IP20
Pollution prevention class	Class 2
Gas ballast function	Yes
Valve plate material	FFKM
Diaphragm material	PTFE+FKM
Material of gas pipeline connecting pipe	FEP
Material of suction joint	PTFE+C
Gas ballast material	FKM/PTFE+C
Gas chamber material	ETFE
Overall dimension W×D×H(mm)	270×250×210
Weight(Kg)	9.5
Packing dimension W×D×H(mm)	325×305×250
Packing weight(Kg)	10
