50L Vacuum Filter

50L Vacuum Filter

Model: ZF-50L

Vacuum Filter Put the materials which need to be filtered on the filter layer evenly, and then connect the glass filter flask with a vacuum pump. The material in the funnel can be filtered according to negative pressure principle. And then the material after filtration is pumped into glass filter flask. The standard of the filtered material depends on the specifications of the filter cloth used.

Introduction
Specifications
Comparisons

Description:

Please make sure that the stainless steel funnel of this equipment should be equipped with different filter materials (filter cloth, filter screen, filter membrane, etc., which needs to be prepared by the customer) before usage. Put the materials which need to be filtered on the filter layer evenly, and then connect the glass filter flask with a vacuum pump. The material in the funnel can be filtered according to negative pressure principle. And then the material after filtration is pumped into glass filter flask. The standard of the filtered material depends on the specifications of the filter cloth used. This equipment can be used for solid-liquid separation, material drying, liquid decontamination and other operations.

Feature:

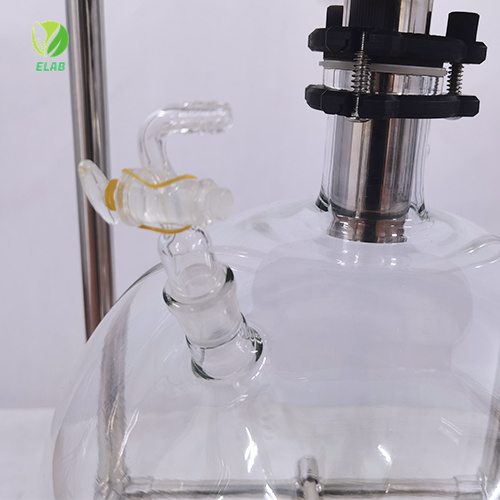

1.The glass filter flask uses high borosilicate glass (expansion coefficient 3.3), which has stable performance.

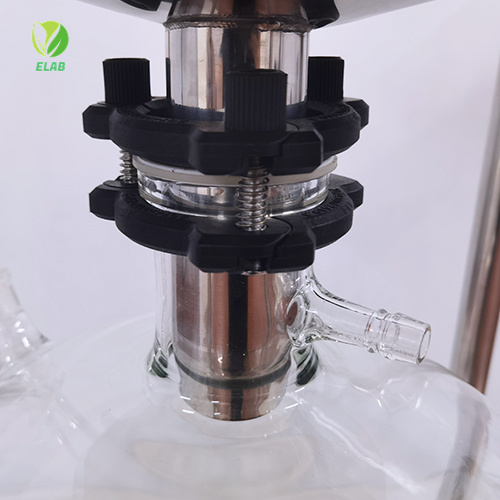

2.304 stainless steel funnel, with 4mm hole at the bottom of the funnel.

3. Using aluminum alloy + stainless steel material as frame.

4.Glass material discharging valve.

5.There is a universal wheel with brake at the bottom of the equipment, which can be moved as a whole and be operated conveniently.

Model		ZF-50L

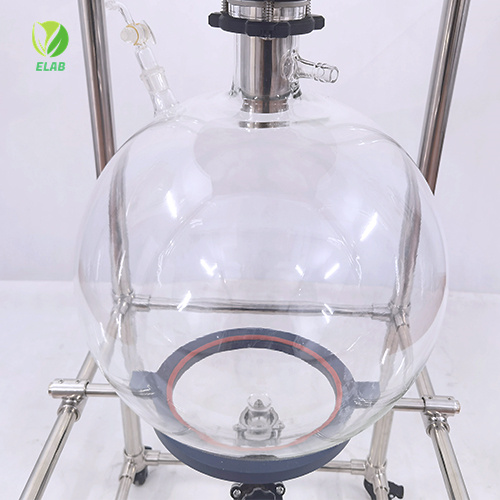

Volume of glass filter flask		50L spherical shape
Vacuum		0.098Mpa
Filter flask Φ470m 3 ports	Funnel connection port	Φ80mm flange port
	Vacuum port	24# standard port
	Material discharging port	Φ80mm flange port
Vacuum valve		24# vacuum valve; vacuum nozzle (pagoda joint) with 12mm outer diameter
Material discharging port		Φ45 spherical convex port (glass + PTFE core C type valve), material discharge valve 20mm
Funnel dimension		Φ450×250H(mm) about 39L
Overall dimension(WDH)		580(W)×600(D)×1530(H)mm
Net weight		38KG
Packing dimension		1470×620×700mm wooden package 0.64m³
Packing weight		67KG

Model	ZF-10L	ZF-20L	ZF-30L	ZF-50L	ZF-100L
Volume of glass filter flask	10L spherical shape	20L spherical shape	30L spherical shape	50L spherical shape	100L spherical shape
Vacuum	0.098Mpa	0.098Mpa	0.098Mpa	0.098Mpa	0.098Mpa
Kettle body	Φ280mm 3 ports	Φ355mm 3 ports	Φ610mm 3 ports	Φ470m 3 ports	Φ610mm 3 ports
Funnel connection port	Φ80mm flange port	Φ80mm flange port	Φ80mm flange port	Φ80mm flange port	Φ80mm flange port
Vacuum port	24# standard port	24#standard port	24# standard port	24# standard port	24# standard port
Material discharging port	Φ45 spherical convex port	Φ45 spherical convex port	Φ80mm flange port	Φ80mm flange port	Φ45 spherical convex port
Vacuum valve	24#standard plug valve, vacuum nozzle (pagoda joint) with 12mm outer diameter	24#vacuum valve, vacuum nozzle (pagoda joint) with 12mm outer diameter	24#standard plug valve, air releasing valve (pagoda joint), with 12mm outer diameter	24# vacuum valve; vacuum nozzle (pagoda joint) with 12mm outer diameter	24#standard plug valve, air releasing valve (pagoda joint), with 12mm outer diameter
Material discharging port	Φ45 spherical convex port (glass + PTFE core C type valve), material discharging port 20mm	Φ45 spherical convex port (glass + PTFE core C type valve), material discharging port 20mm	80mm flange in 33mm discharge hole slant outlet (pagoda connector) in 34mm off the ground 350mm	Φ45 spherical convex port (glass + PTFE core C type valve), material discharge valve 20mm	Φ45 spherical convex port (glass + PTFE core C type valve), material discharging port 20mm
Funnel dimension	Φ350×220H(mm) about 21L	Φ350×220H(mm) about 21L	Ф450x250H(mm)about 39L	Φ450×250H(mm) about 39L	Φ550×320H(mm) about 76L
Overall dimension(WDH)	500×520×1230mm	500×520×1330mm	580x600x1530mm	580(W)×600(D)×1530(H)mm	720×750×1850mm
Net weight	24KG	27KG	35KG	38KG	67KG
Packing dimension	1300×560×640mm, wooden package, 0.47m³	1380×560×630mm wooden package 0.49m³	1470x620x700mm wooden package 0.64m³	1470×620×700mm wooden package 0.64m³	1710×770×850mm wooden package 1.12m³
Packing weight	50KG	53KG	64KG	67KG	116KG

Model: ZF-50L
