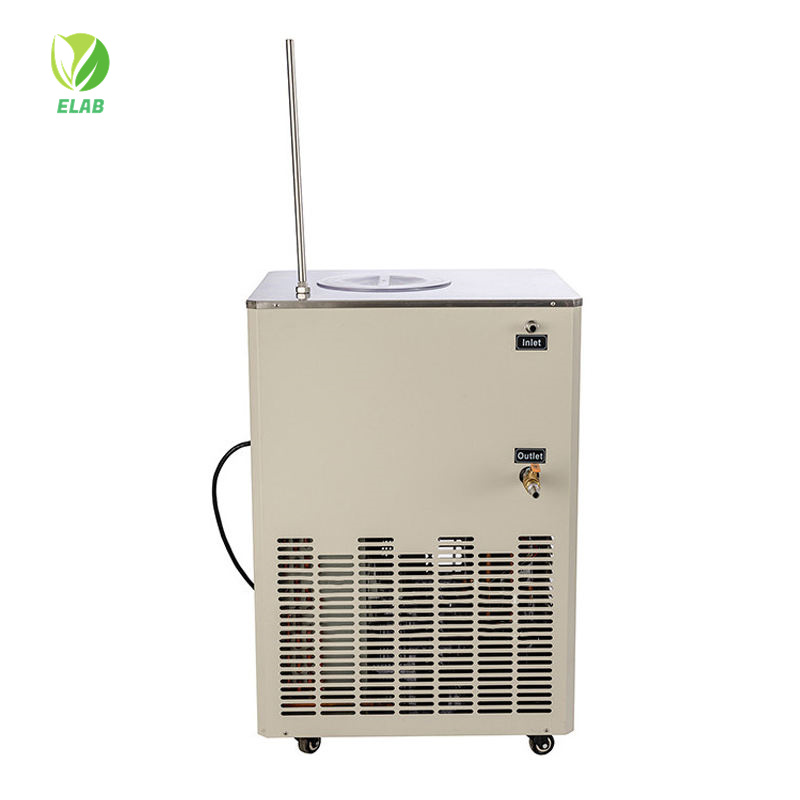

50L Chilling Circulator

Model: DLSB-50/(30-120)

Adoption of low-temperature chilling circulator of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temperature and store chemical and biological products under low-temperature. Besides, low-temperature chilling circulator can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, Muti-purpose Circulating Water Vacuum Pump.

Introduction
Specifications
Comparisons

Description:

Adoption of low-temperature chilling circulator of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temperature and store chemical and biological products under low-temperature. Besides, it can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, Muti-purpose Circulating Water Vacuum Pump.

Feature:

1. air- cooled(import) closed compressor, quality and reliable.

2. Are of high quality refrigeration unit dedicated relay, protector, capacitors and other devices, quality assurance.

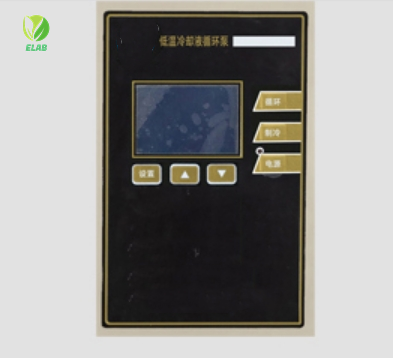

3. Digital temperature display, microcomputer control, operation is simple.

4. Cooling capacity, cooling speed, which greatly improved work efficiency.

5. With normal use of water scarcity, water quality, water pressure, poor water temperature and high temperature working conditions, which can effectively protect all types of precision equipment, instruments.

6. Adjustable flow of the circulating pump of the machine can also be customized, great to meet the actual needs of different users.

Model	Cooling function			Cycling function		Temp. Control function		Working condition			Size
	Volume	Min temperature	Cooling capacity	Flow capacity	Head	Temperature range	Temp. accuracy	Voltage	Condition		Length	Width	Height
	(L)	(ºC)	(W)	(Q)	H(m)	(ºC)	(ºC)	(V)	Temperature(ºC)	Humidity	(mm)	(mm)	(mm)
DLSB-50/10	50	-15	9428-4188	30L/MIN	10-12M	-120	±0.2	380	25	(60-80)% ventilation	650	550	950
DLSB-50/20	50	-24	15786-3694			-10	±0.2	380	25		650	550	950
DLSB-50/30	50	-33	7549-3540			-20	±0.2	380	25		700	600	980
DLSB-50/40	50	-42	10364-2565			-30	±0.2	380	25		700	600	980
DLSB-50/60	50	-62	1442-2780			-40	±0.2	380	25		900	700	1140
DLSB-50/80	50	-82	1210-2562			-80	±0.2	380	25		900	700	1140
DLSB-50/120	50	-122	1298-2562			-120	±0.2	380	25		1270	900	1140

Model: DLSB-50/(30-120)
