1L Hand wheel Lift Rotary Evaporator

Model: RE-201D

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, Rotary evaporator is the main means for manufacturing and analyzing experiments when they do extraction and concentration. Rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.

Introduction
Specifications
Comparisons

Description:

Rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.

Feature:

1.The parts in contact with materials are all made of high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene materials, which are stable in performance and difficult to chemically react with materials.

2.The main frame is made of cold plate anti-corrosion spray + aluminum alloy material, and the pot is made of stainless steel.

3.The sealing system adopts PTFE + fluorine rubber compound combination seal.

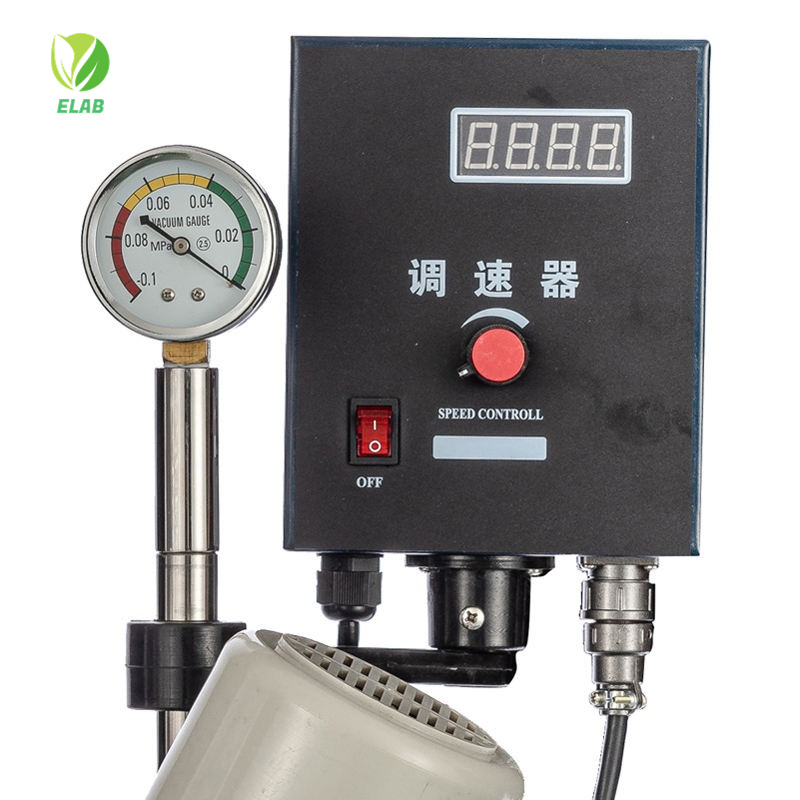

4.The vacuum pressure gauge displays real-time vacuum and the pointer displays.

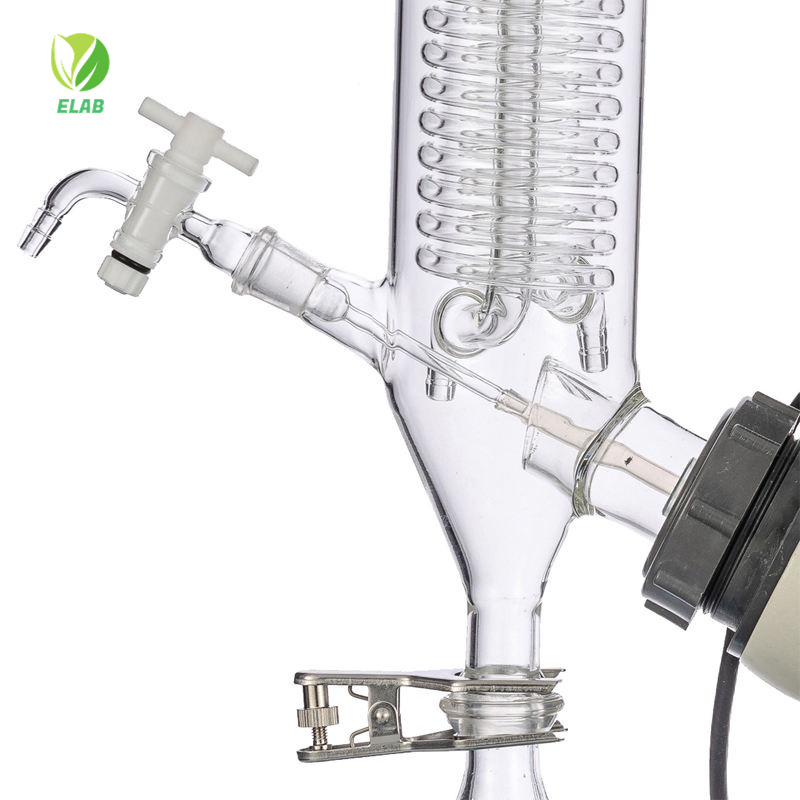

5.The piston-type feeding valve is sleeved with the PTFE extension tube, which can continuously feed to the evaporating flask under vacuum.

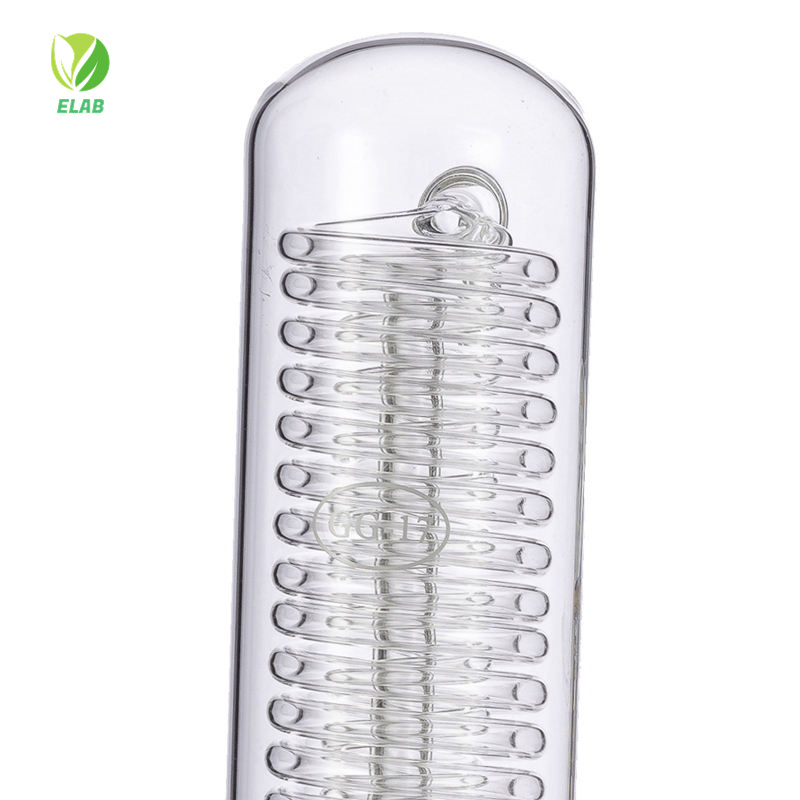

6.One-piece condenser, upright double-layer serpentine coil.

7.Rotating and heating power switch control, tilt button (ON-OFF).

8. Electronic stepless speed regulation, fine-tuning by twisting, digital display of speed.

9.Digital display of temperature of constant temperature bath, K-type sensor at the bottom of the pot + stainless steel probe.

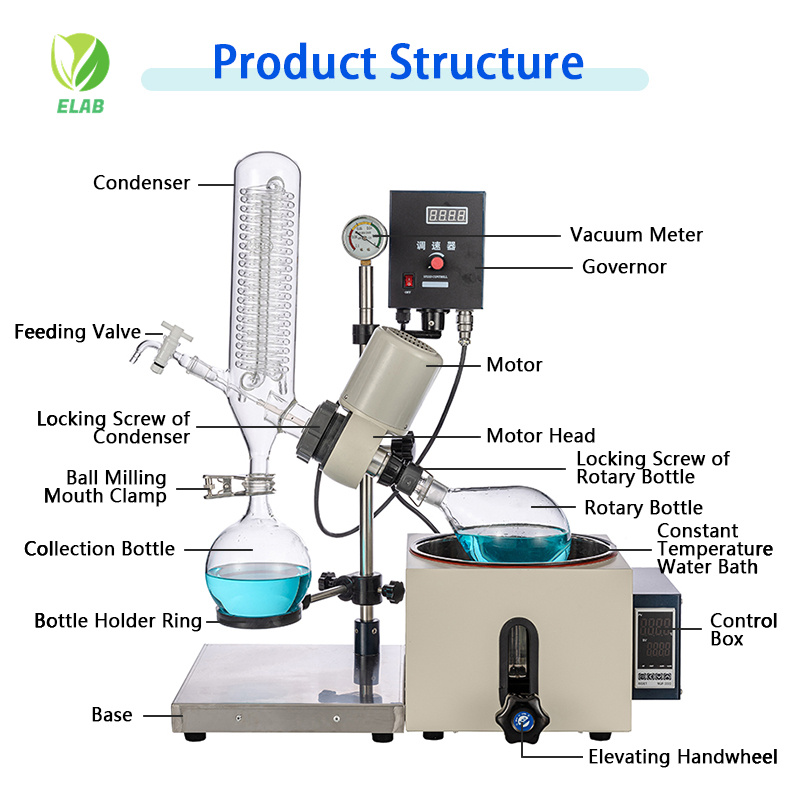

10. The hand wheel of the bath pot is raised and lowered, rotating and heating double fuses for safety protection. 详情1.jpg

Model	RE-201D
Voltage/Frequency	220V/50HZ
Whole power	1040W
Rotary power	40W
Heating power	1000W
Vacuum degree	0.0098Mpa
Rotary flask volume	Eggplant shape 1L,Φ131mm/24# standard port

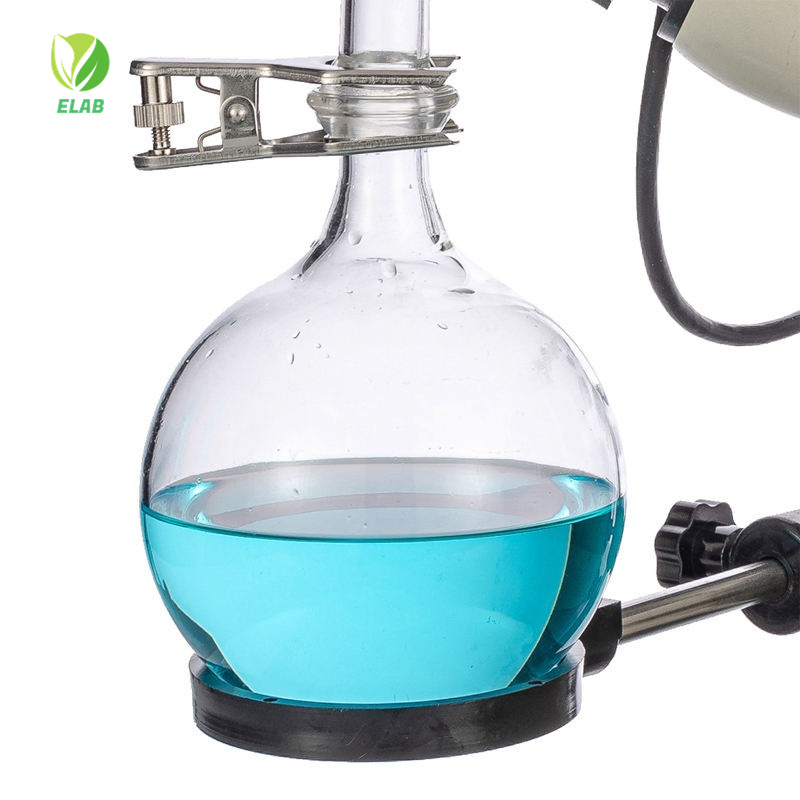

Receiving flask volume	Round shape 1L,Φ131mm/35# ball mill port
Rotary speed	0-120rpm/min
Temp.cotrolling range	room temperature -180℃
Temp. accuracy	±1℃
Condenser size	Φ85*430H(mm) ,down 35# ball mill port
Condensation area	0.17㎡
Charging valve	19# standard plug valve, feed nozzle(pagoda-shape connectors),outer diameter 10mm
Vacuum suction nozzle	Pagoda-shape connectors, outer diameter 10mm
Condensing coil in and out circuation nozzle	Pagoda-shape connectors, outer diameter 12mm
Pot bravery size	Φ245*140H(mm) about 6.6L，5.5kg
Overall dimensions (WLH)	700330785mm
Net weight	17kg
Packing dimensions	600460470mm, 0.13m³
Packing weight	20.5kg

Model	RE-201D	RE-301	RE-501
Glass material	GG-17	GG-17	GG-17
Frame material	Stainless steel	Stainless steel	Stainless steel
Pot shell Material	Spray anti-corrosion 270270195mm	Spray anti-corrosion 290296240mm	Spray anti-corrosion 310320240mm
Pot bravery material	Stainless steel 250*140mm	Stainless steel 255*170mm	Stainless steel 280*170mm
Plate size	280*330mm	350*330mm	350*330mm
Evaporator flask	1L 24#standard port	3L ¢50flange port	5L ¢50flange port
Collect flask	1L 24#standard port	2L 35#ball mill port	3L 35#ball mill port
Vacuum degree	0.098Mpa	0.098Mpa	0.098Mpa
Rotary power	30W	40W	40W
Rotary speed	0-120rpm	0-120rpm	0-120rpm
Heating power	1.5KW	2KW	2KW
Heating temp.range	0-400ºC	0-400ºC	0-400ºC
Temp. accuracy	±1ºC	±1ºC	±1ºC
Voltage	220V/50Hz	220V/50Hz	220V/50Hz
Lifting disctance	120mm	120mm	120mm
Dimension(mmmmmm)	700440885	660330970mm	7003351009mm
Packing size(mmmmmm)	600460460 0.12CBM	1000460450 0.21CBM	1010610470 0.29CBM
Packing weight(KG)	21	38	41
