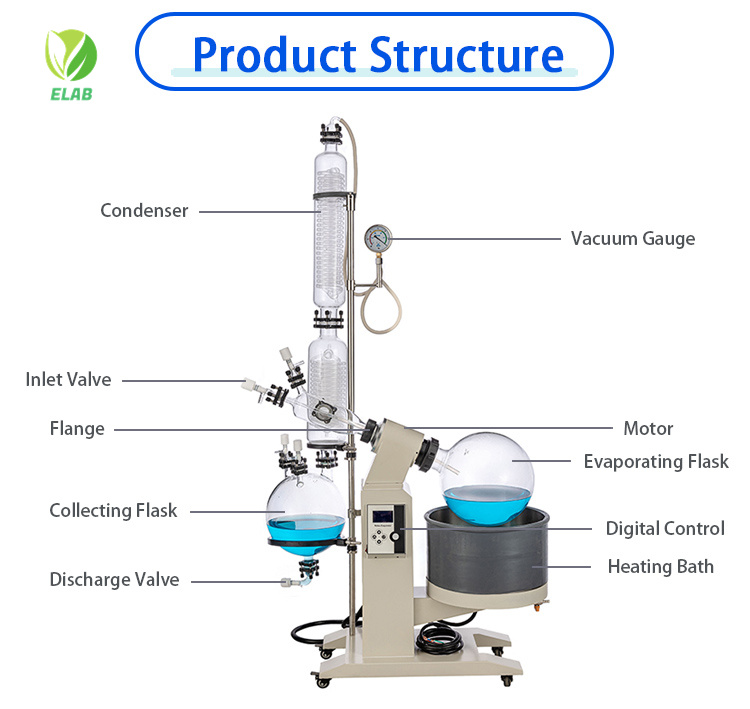

Rotovap evaporator, commonly referred to as rotovap, are important laboratory equipment for the efficient evaporation of solvents under reduced pressure. It is particularly useful in chemistry and biochemistry laboratories, where rotovap evaporator can be used to gently remove solvents from samples. The main components of a rotary evaporator include:
1. Motor unit : This component is responsible for rotating the evaporation bottle. Rotation increases the surface area of the liquid, thereby enhancing the evaporation process by transferring heat more efficiently and removing solvents.
2. Vacuum system : The vacuum system plays a vital role by reducing the pressure in the system. This reduction in pressure lowers the boiling point of the solvent, causing it to evaporate at a lower temperature than normal atmospheric conditions. This is especially important for preventing degradation of heat-sensitive compounds.
3. Heated water bath : The water bath provides heat to the evaporation bottle, ensuring that the solvent does not freeze during evaporation. It maintains a constant temperature, which is essential for the efficiency of the evaporation process.
4. condenser : The condenser is responsible for cooling and condensing the evaporated solvent vapor back to the liquid state. This is usually done by circulating cold water or using a coolant such as dry ice. The condensed solvent is then collected in a separate flask.
5. Receiving flask : This is where the condensed solvent is collected after passing through the condenser. Receiving flasks allow for easy collection and storage of distilled solvents.
These components work together to promote efficient and controlled evaporation of solvents, making rotovap evaporators an essential tool in a variety of scientific applications, including chemical synthesis, purification processes, and preparation of samples for further analysis.
