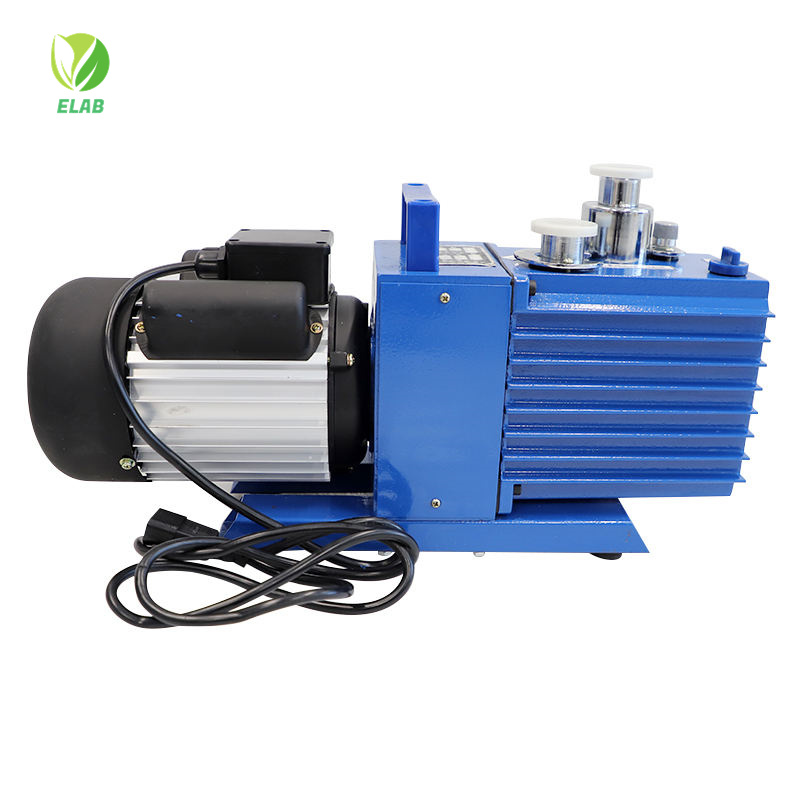

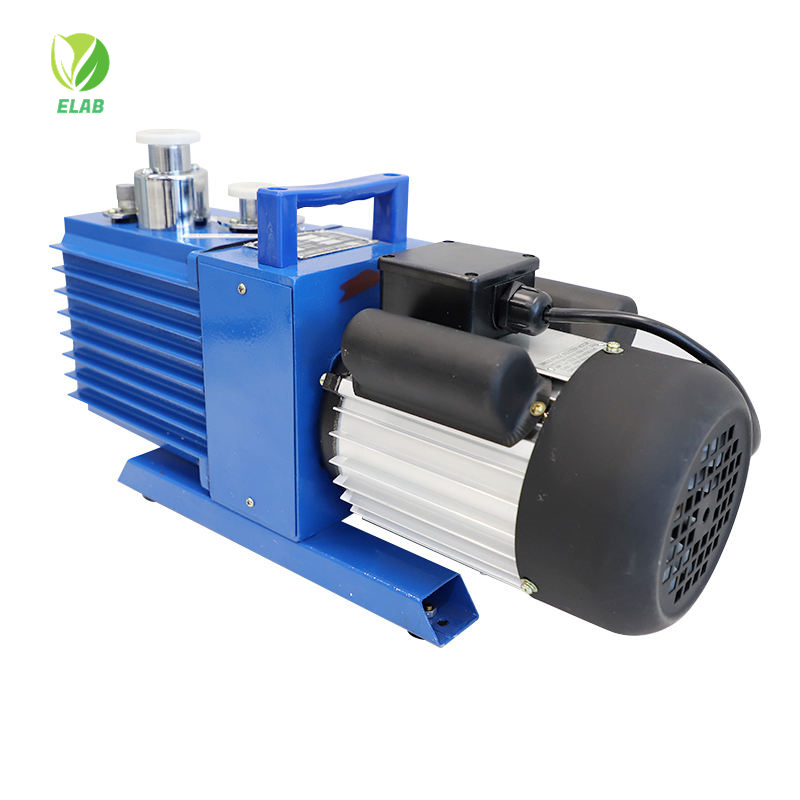

Rotary vane vacuum pumps: the reliable workhorse of vacuum technology

Rotary vane vacuum pumps are widely used devices in vacuum technology. Their operating principle is simple and effective, making them a popular choice for a variety of applications.

The rotary vane vacuum pump consists of a cylindrical chamber with a rotor mounted eccentrically inside. The rotor has multiple vanes that slide in and out of slots as it rotates. These vanes form a series of small, sealed spaces within the pump chamber. As the rotor turns, the vanes move outwards under the influence of centrifugal force, causing the volume on one side of the rotor to increase and the volume on the other side to decrease. This action draws gas molecules in from the inlet, compresses them, and then expel them through the exhaust port. The continuous rotation of the rotor ensures a steady flow of air, allowing the pump to achieve and maintain a low pressure environment.

Rotary vane vacuum pumps are known for their ruggedness and reliability. They are able to withstand a wide range of pressures and can achieve relatively high vacuum levels, typically down to around 10⁻³ Torr. This makes them suitable for a variety of industrial processes, such as vacuum packaging, degassing of liquids, and certain types of vacuum drying. Additionally, their relatively low cost and ease of maintenance make them attractive.

However, these rotary vane vacuum pumps also have some limitations. They require oil to lubricate the vanes and seal the pump chamber, which can lead to oil contamination of the vacuum environment. This makes them less suitable for applications where a clean vacuum is critical. Nevertheless, rotary vane vacuum pumps remain a versatile and essential tool in many vacuum-related operations, providing a reliable method for achieving the desired vacuum conditions.
