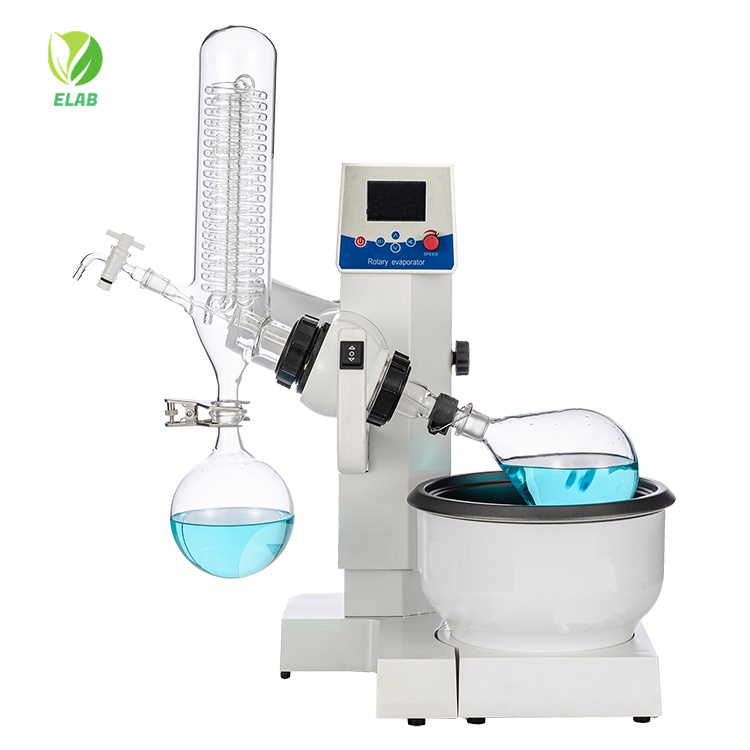

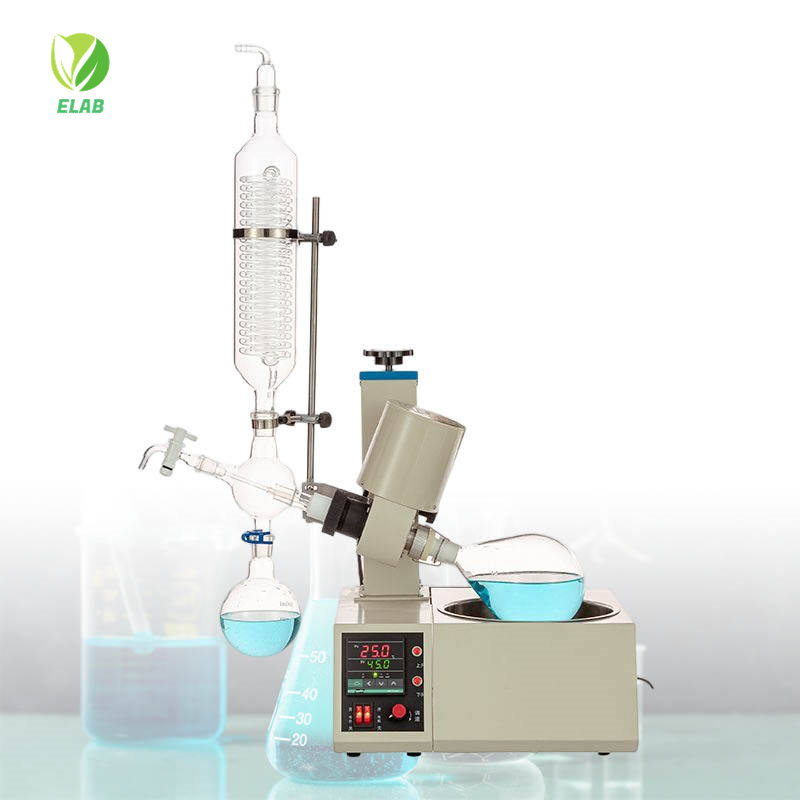

A rotary evaporator, also known as a rotary evaporator, is a widely used piece of laboratory equipment that evaporates solvents by distillation under reduced pressure. It operates by rotating a flask containing a sample solution in a heated water bath, which increases the surface area of the liquid and promotes evaporation. The system is under vacuum, which lowers the boiling point of the solvent, allowing it to evaporate at a lower temperature. The vapor is then drawn into a condenser, where it cools and condenses into a liquid, which is then collected in a receiving flask.
Advantages of a rotary evaporator:
1. Efficient evaporation: The combination of rotation, heating, and vacuum significantly speeds up the evaporation process compared to traditional methods.
2. Gentle handling: The lower evaporation temperature prevents thermal degradation of heat-sensitive compounds.
3. Solvent recovery: The condenser allows for efficient collection and reuse of solvents, reducing waste and cost.
4. Versatile: Suitable for a wide range of solvents and applications, including organic synthesis, analytical chemistry, and pharmaceutical research.
Disadvantages of a rotary evaporator:
1. Cost and maintenance: Rotary evaporators are relatively expensive and require regular maintenance, especially the vacuum pump and glassware.
2. Size Limitation: The volume of the sample is limited by the size of the flask, which is not suitable for large-scale production.
3. Safety Considerations: Handling glassware and flammable solvents under vacuum requires strict safety protocols to prevent accidents.
4. Complexity: Setup and operation involve multiple components and steps, which can be challenging for inexperienced users.
Overall, the rotary evaporator is a powerful tool in the laboratory that provides significant benefits for solvent removal and purification tasks, despite its limitations.
